Lenovo Miix 520 Ideapad Holder

Lenovo Miix 520 Ideapad Holder

Regular price $44.99-$66.99 USD $44.99 USD
Regular price Sale price $44.99 USD
Sale Sold out
Finish
Series
customize
Our minimum order quantity is (5) units.

Description

The Levono Miix 520 Ideapad Holder is a VESA or AMPS mounting device that will securely attach your Lenovo Miix. . . read more.

The Levono Miix 520 Ideapad Holder is a VESA or AMPS mounting device that will securely attach your Lenovo Miix 520 Ideapad tablet to any flat surface. The holder features an adjustable design to accommodate your existing tablet case and provides easy access to all ports, buttons, and sensors on the tablet.

read less.

Additional Information

Share
View full details

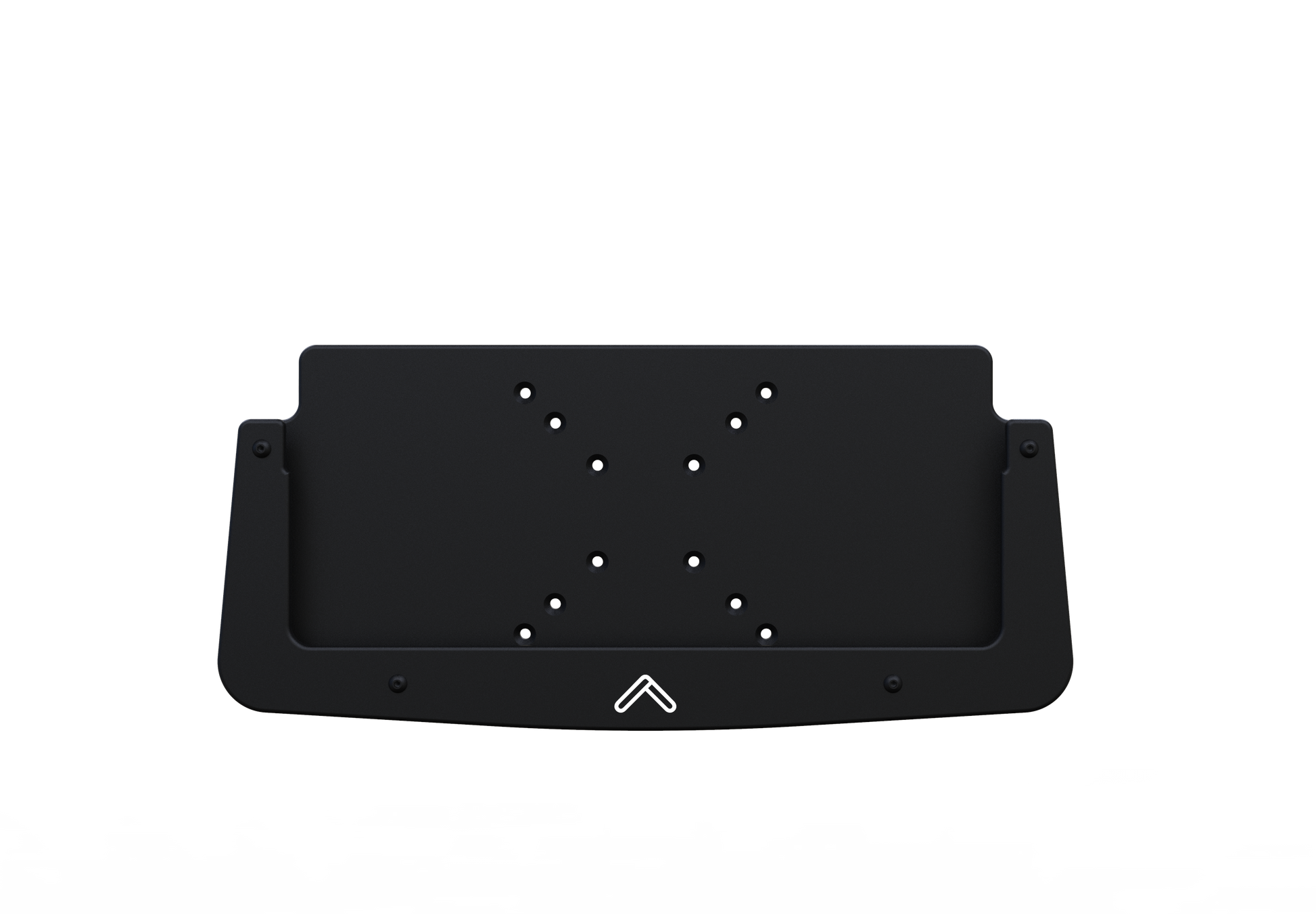

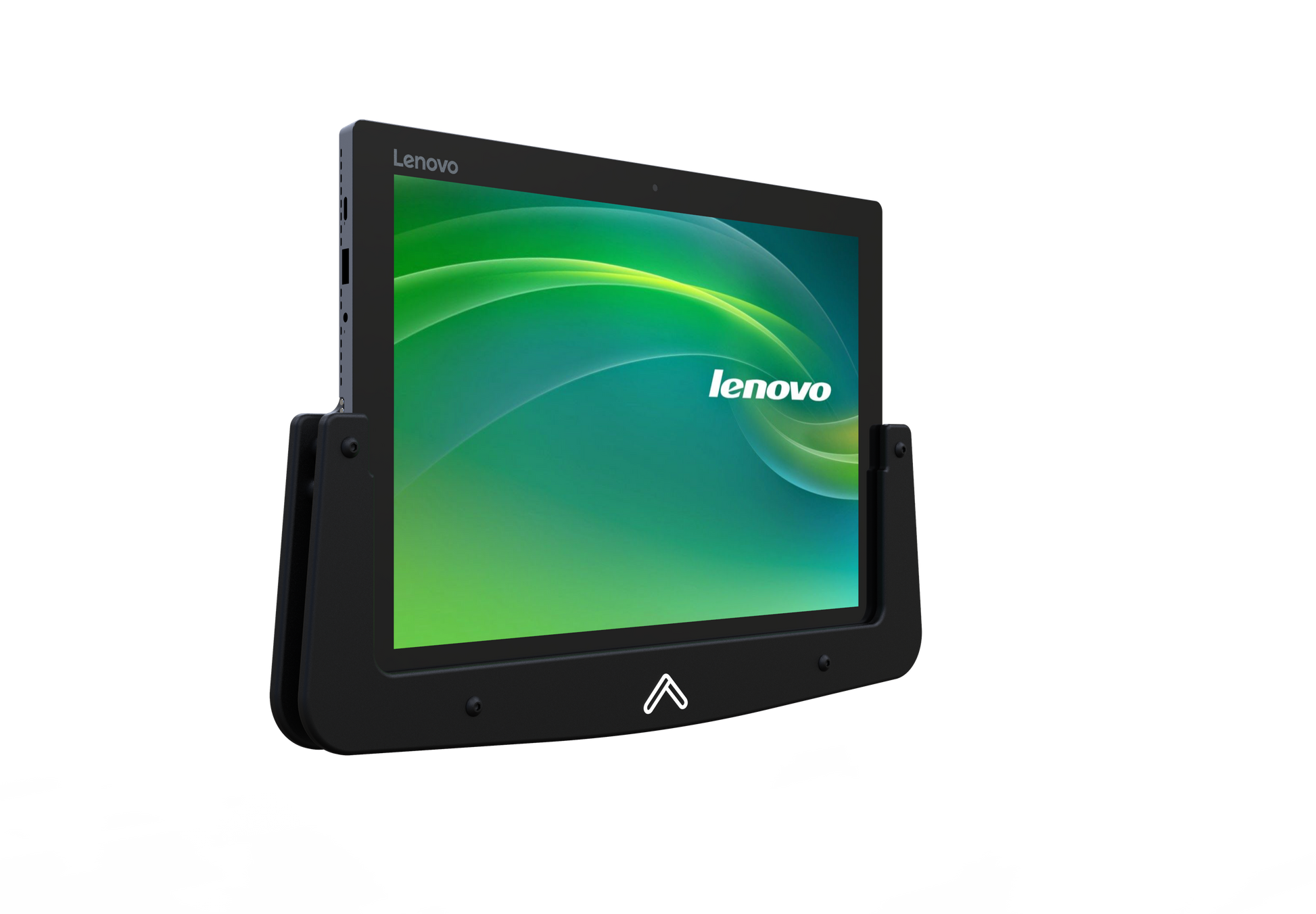

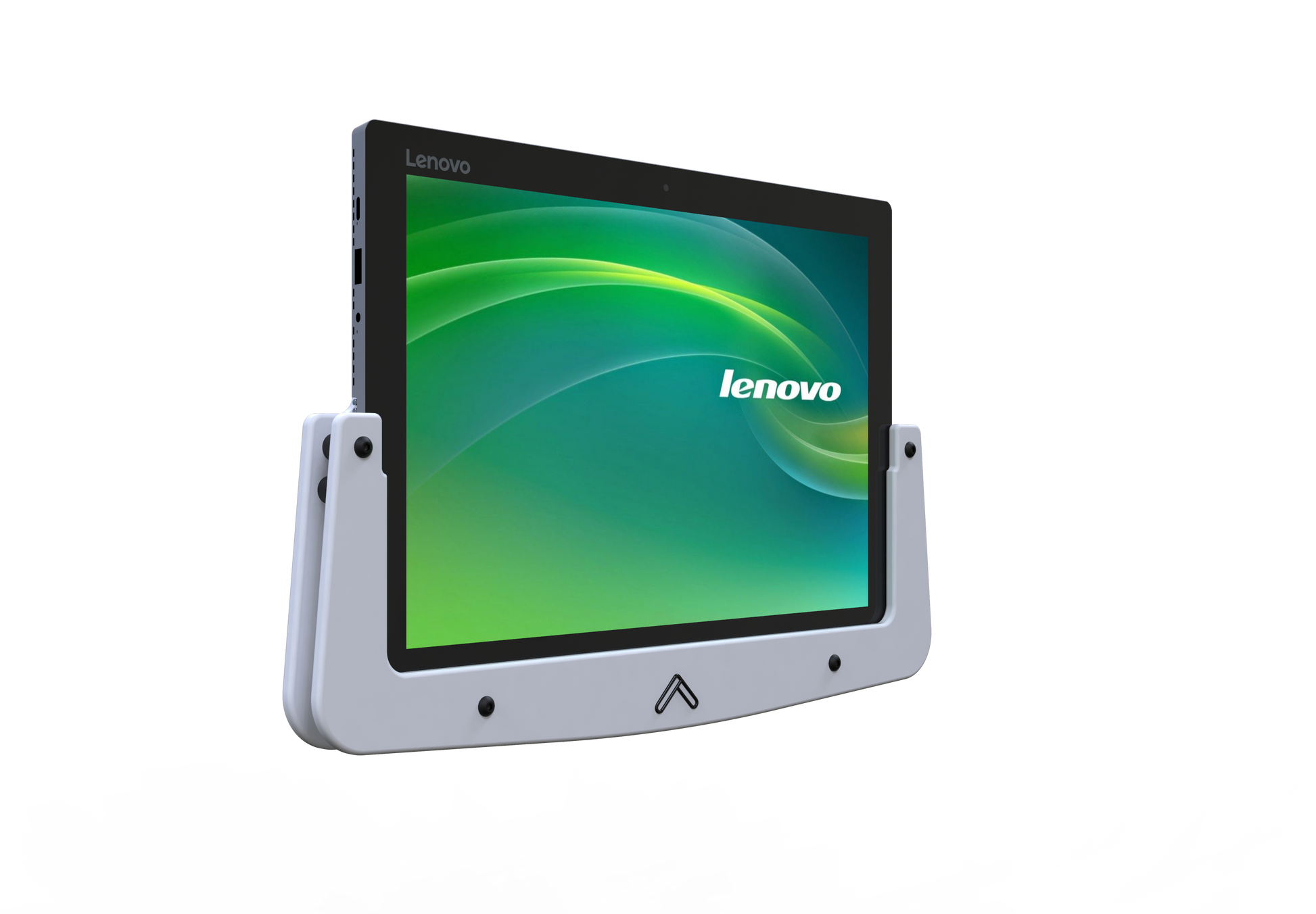

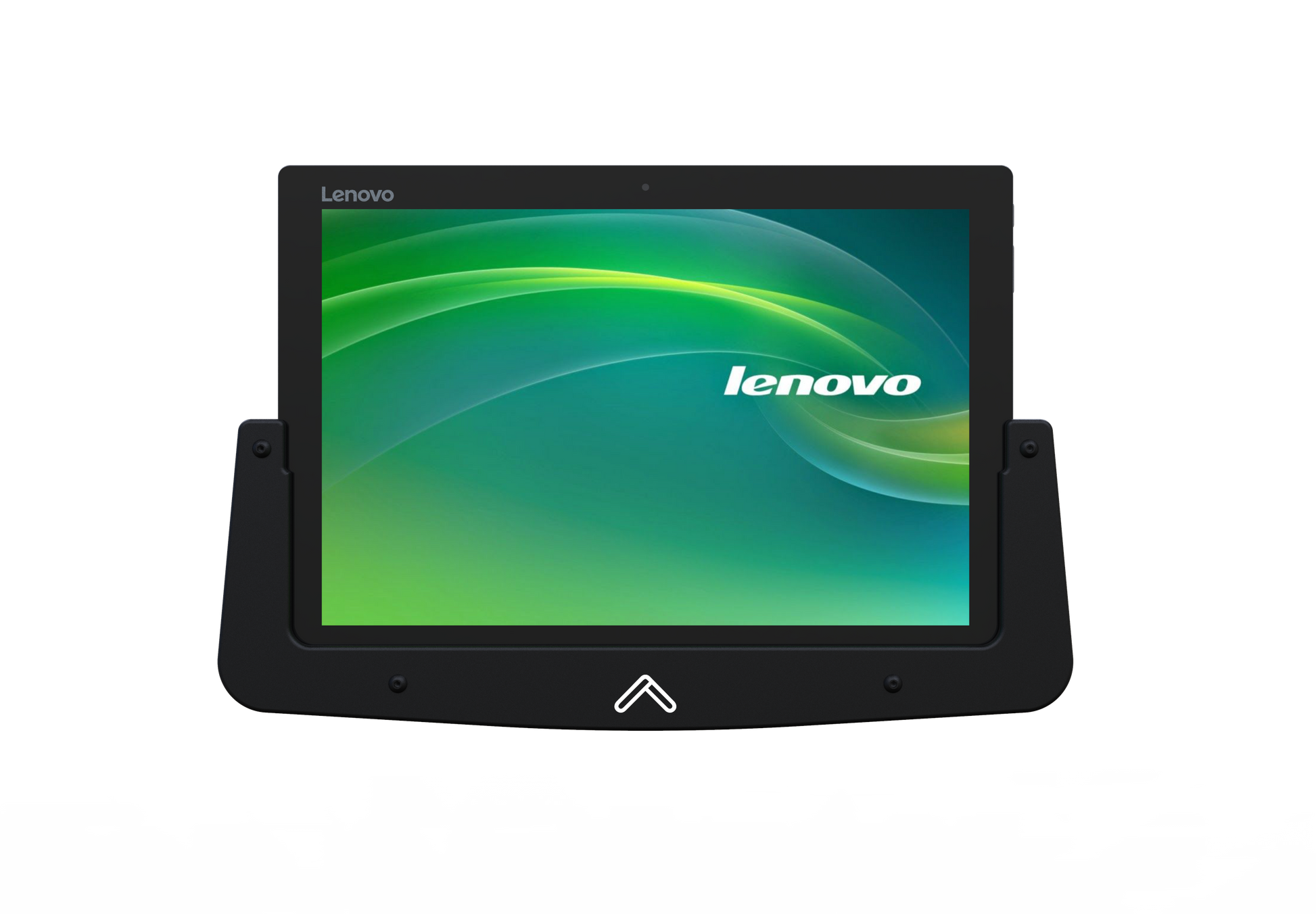

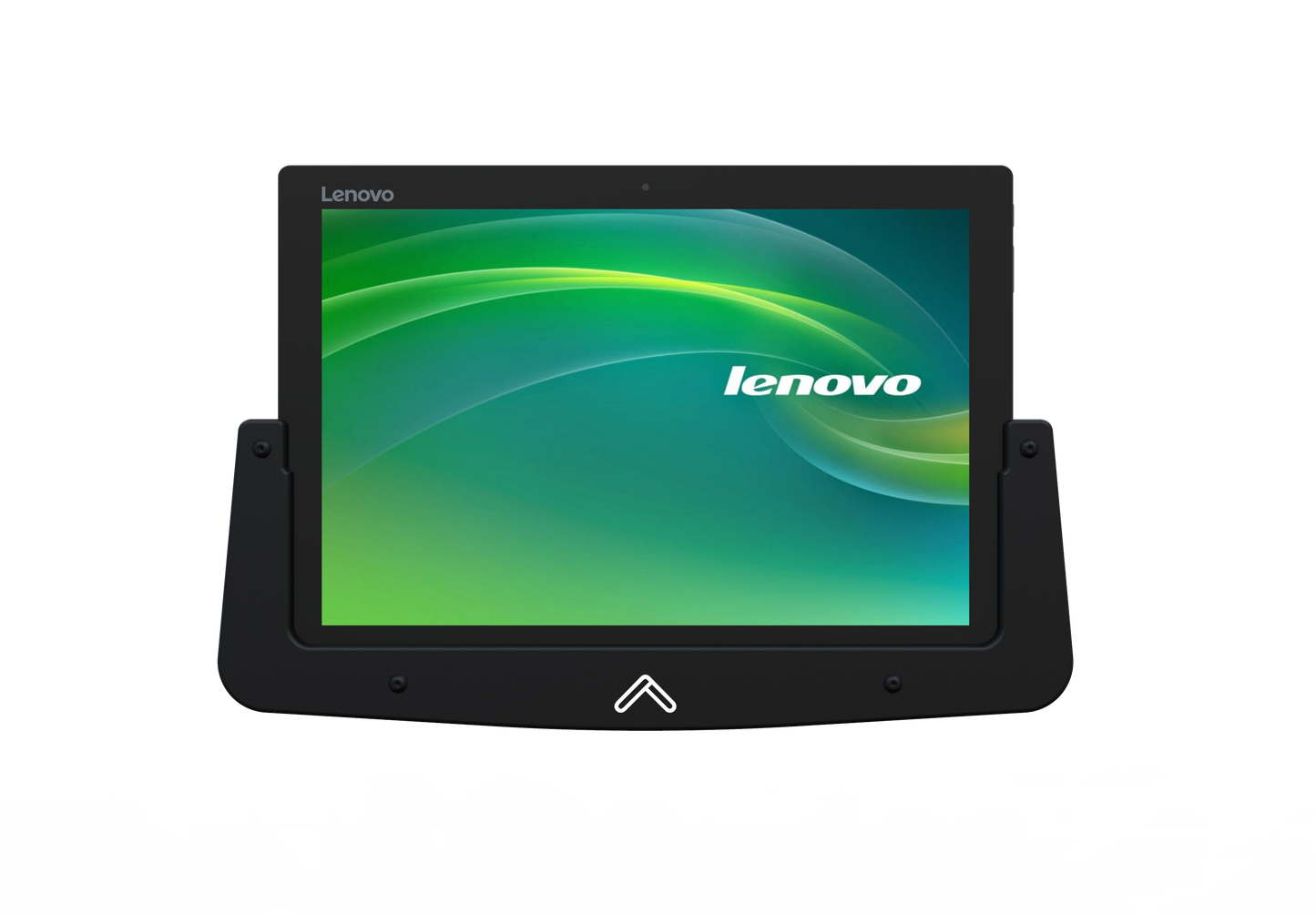

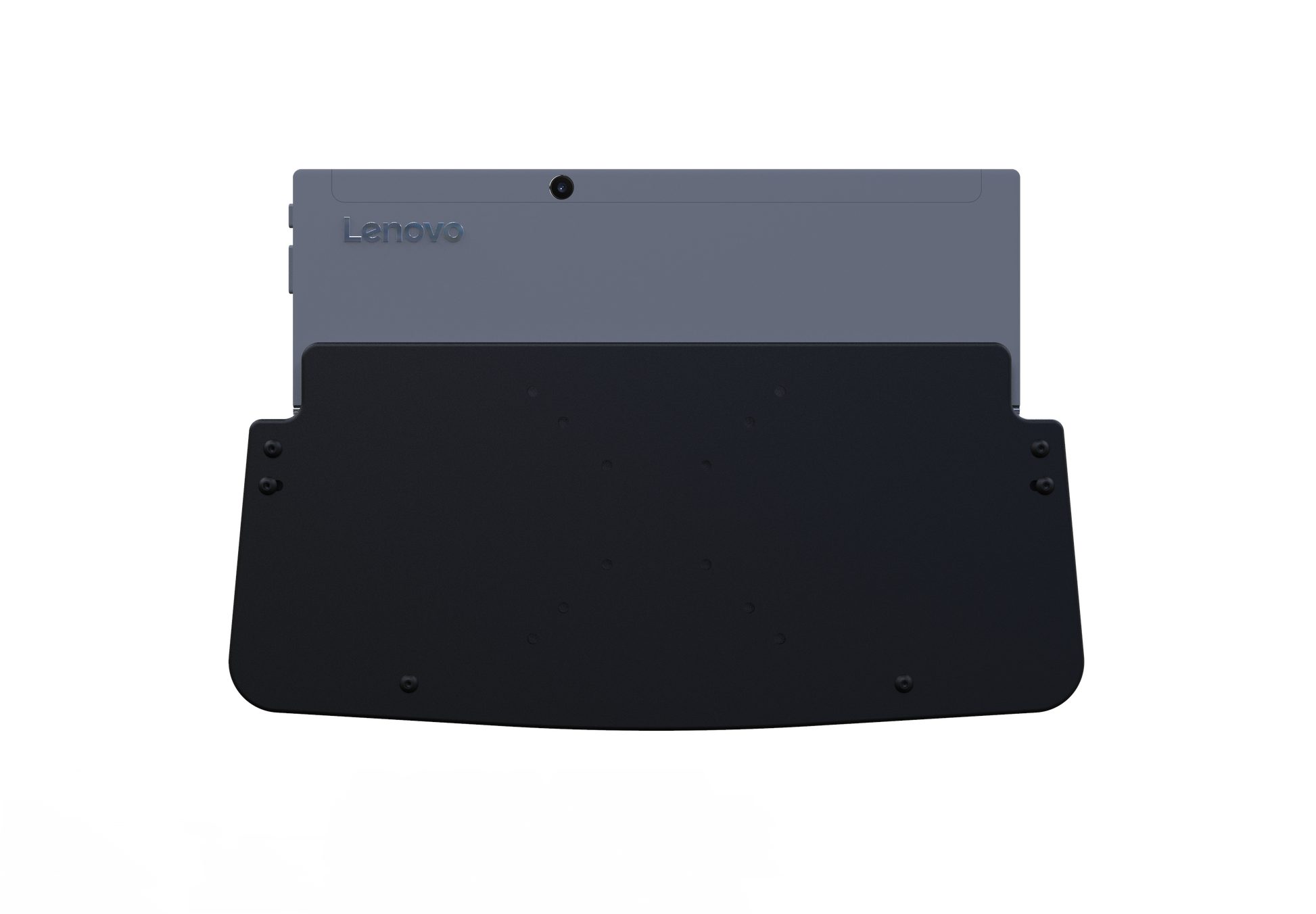

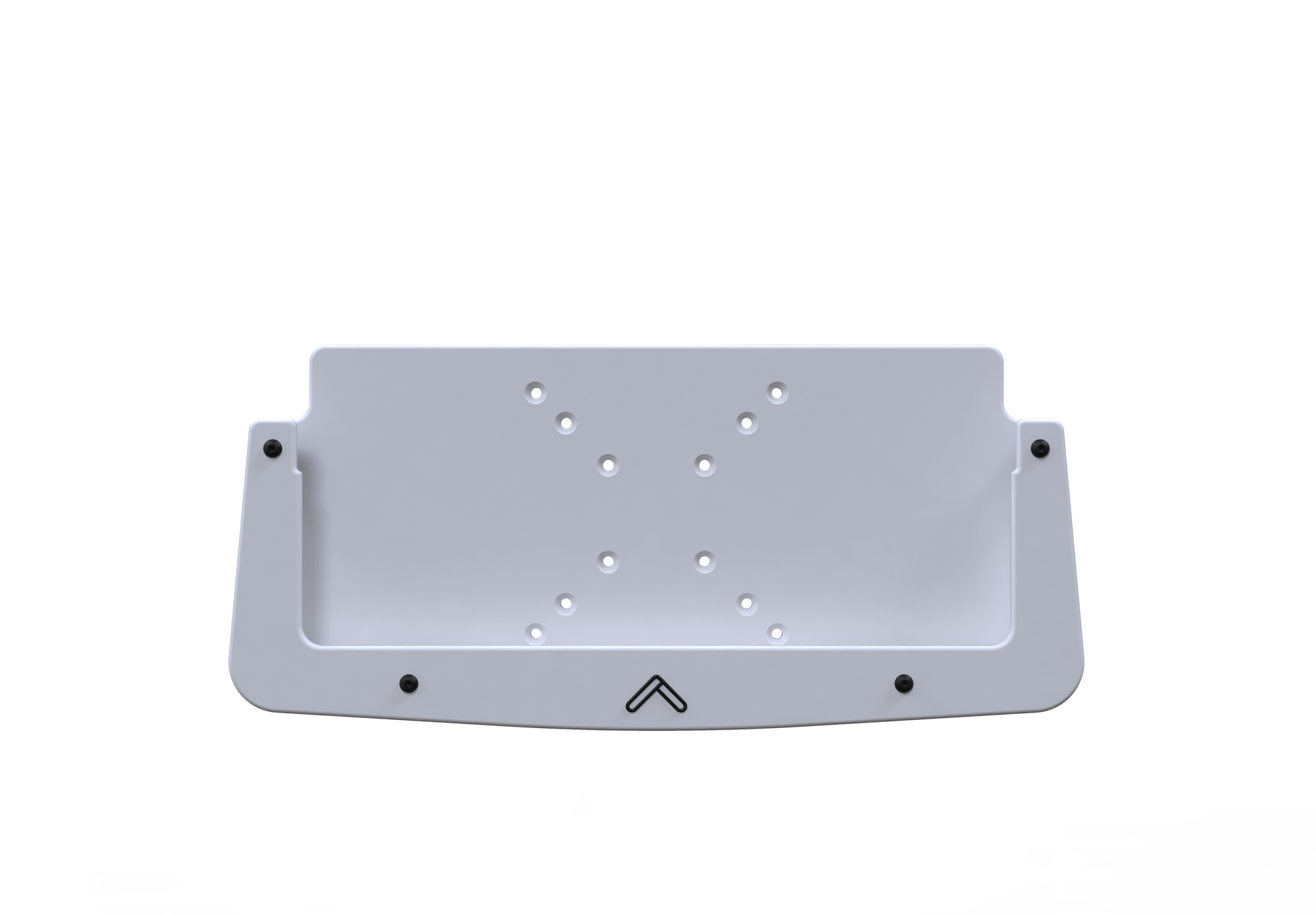

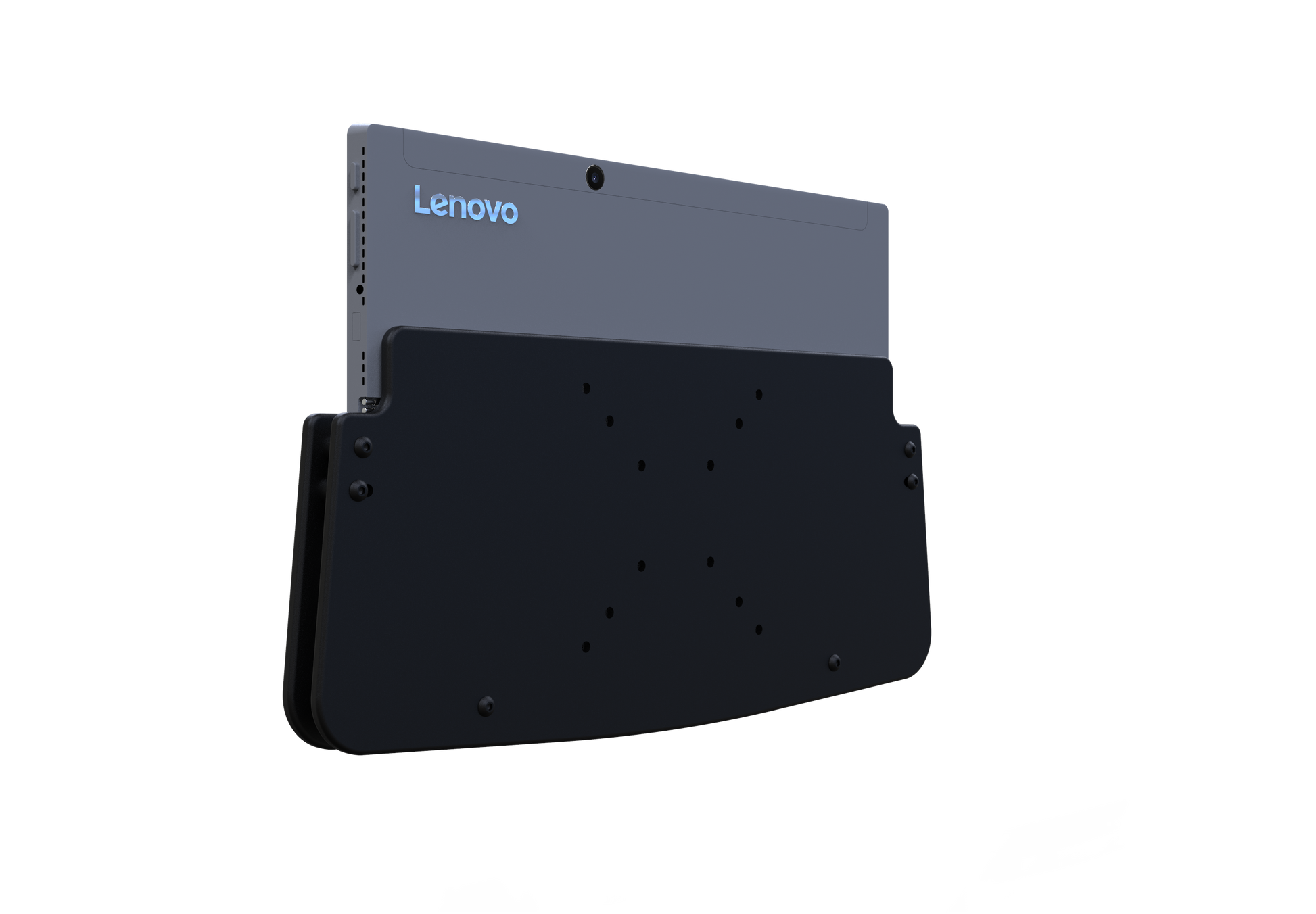

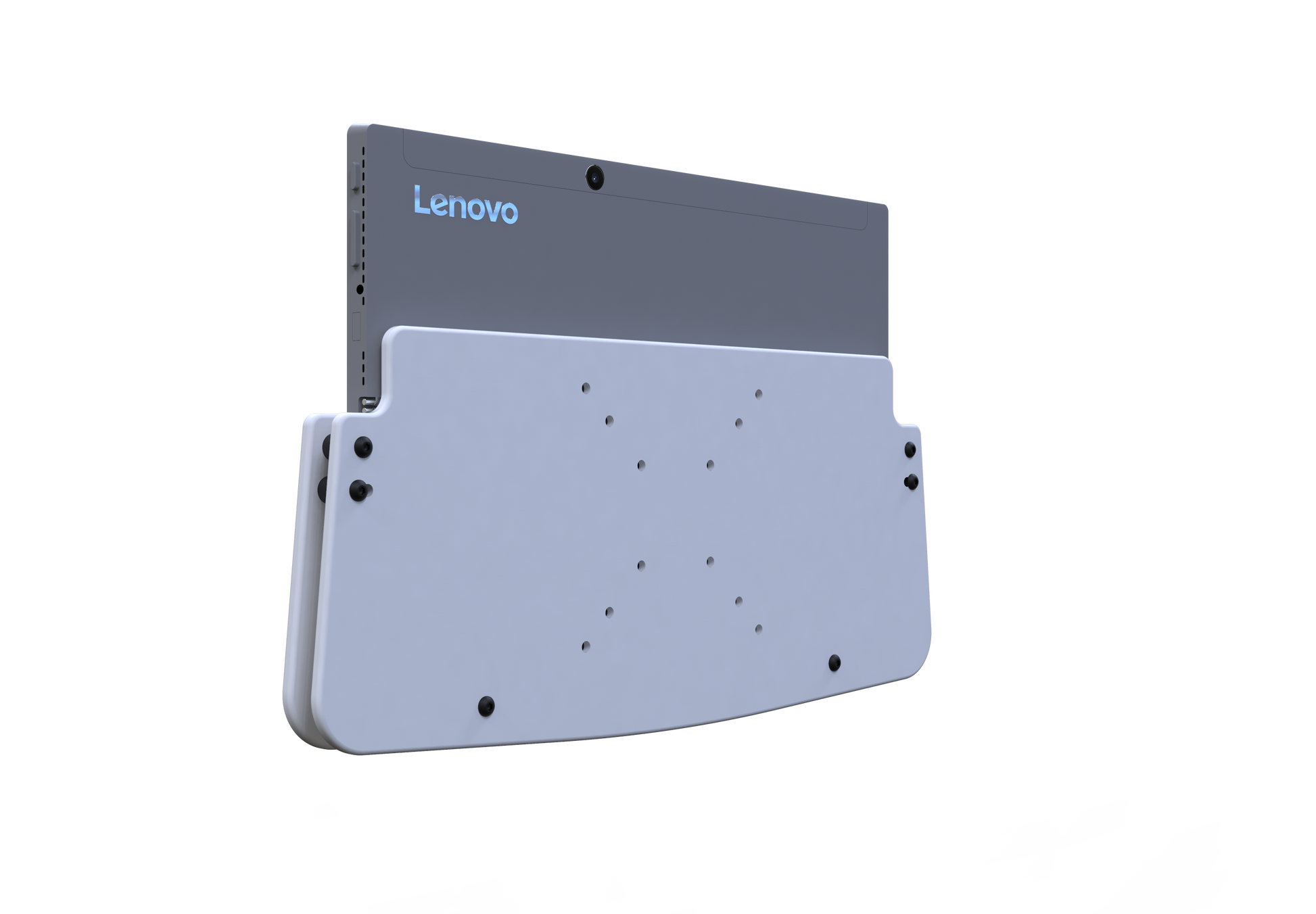

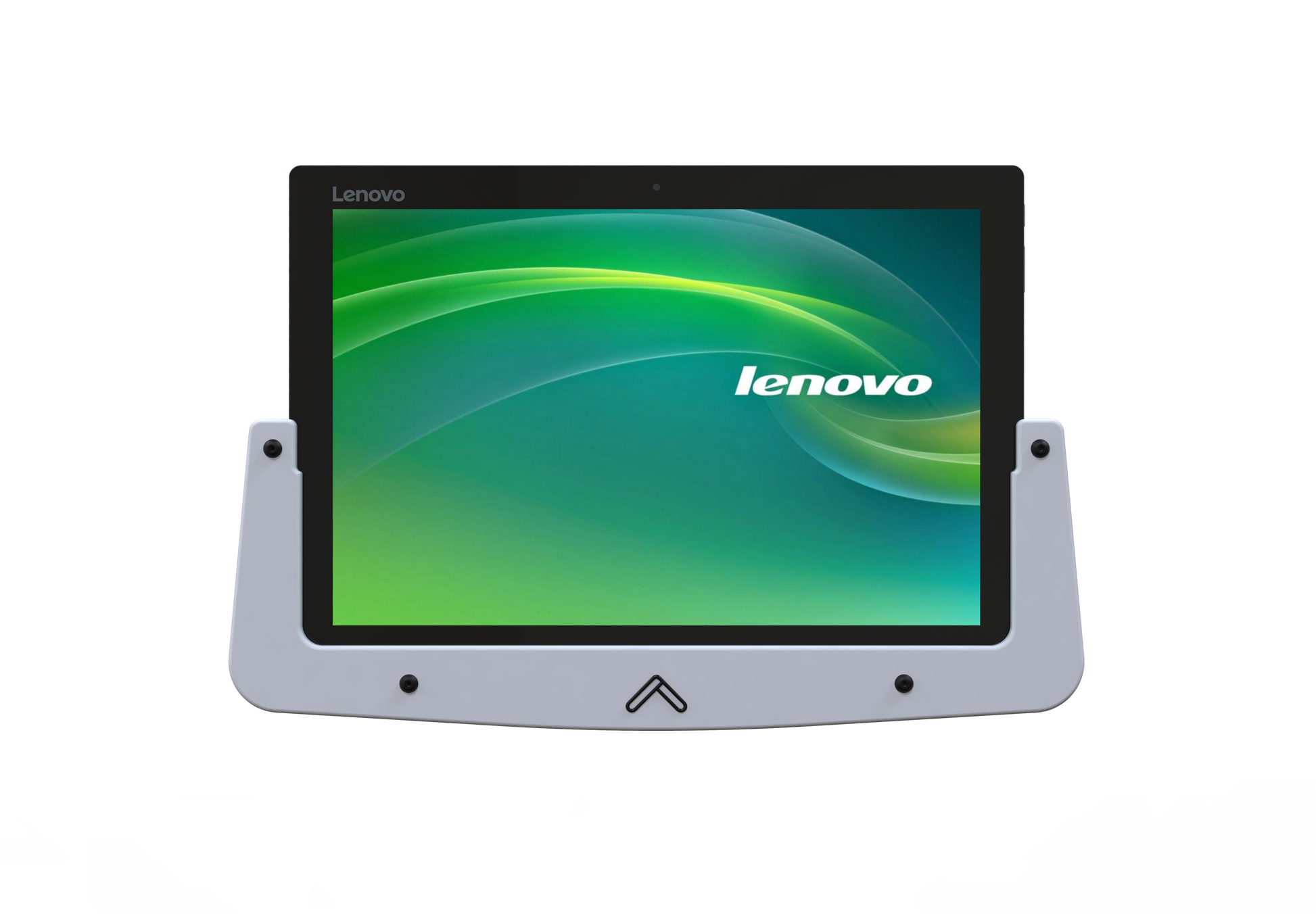

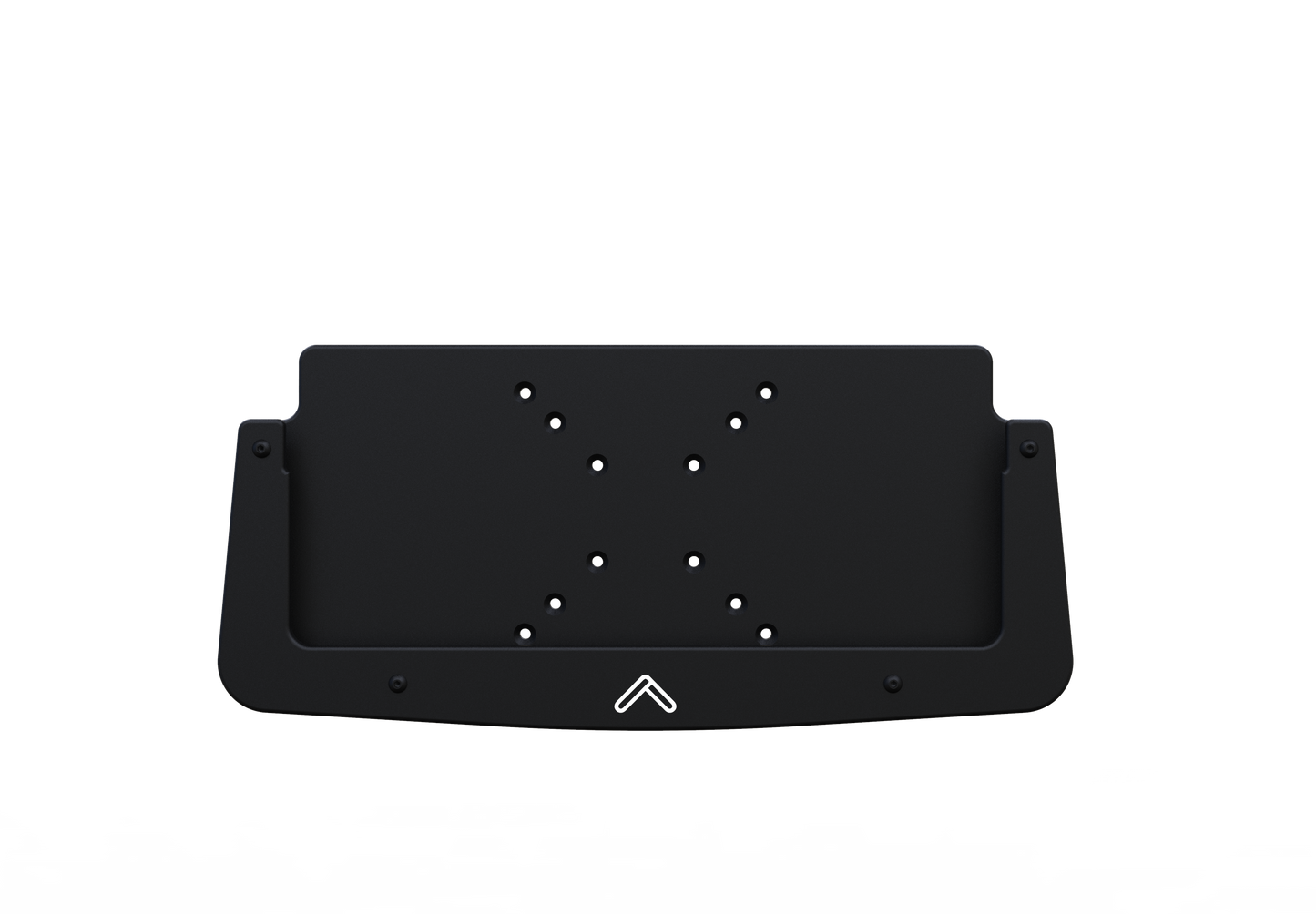

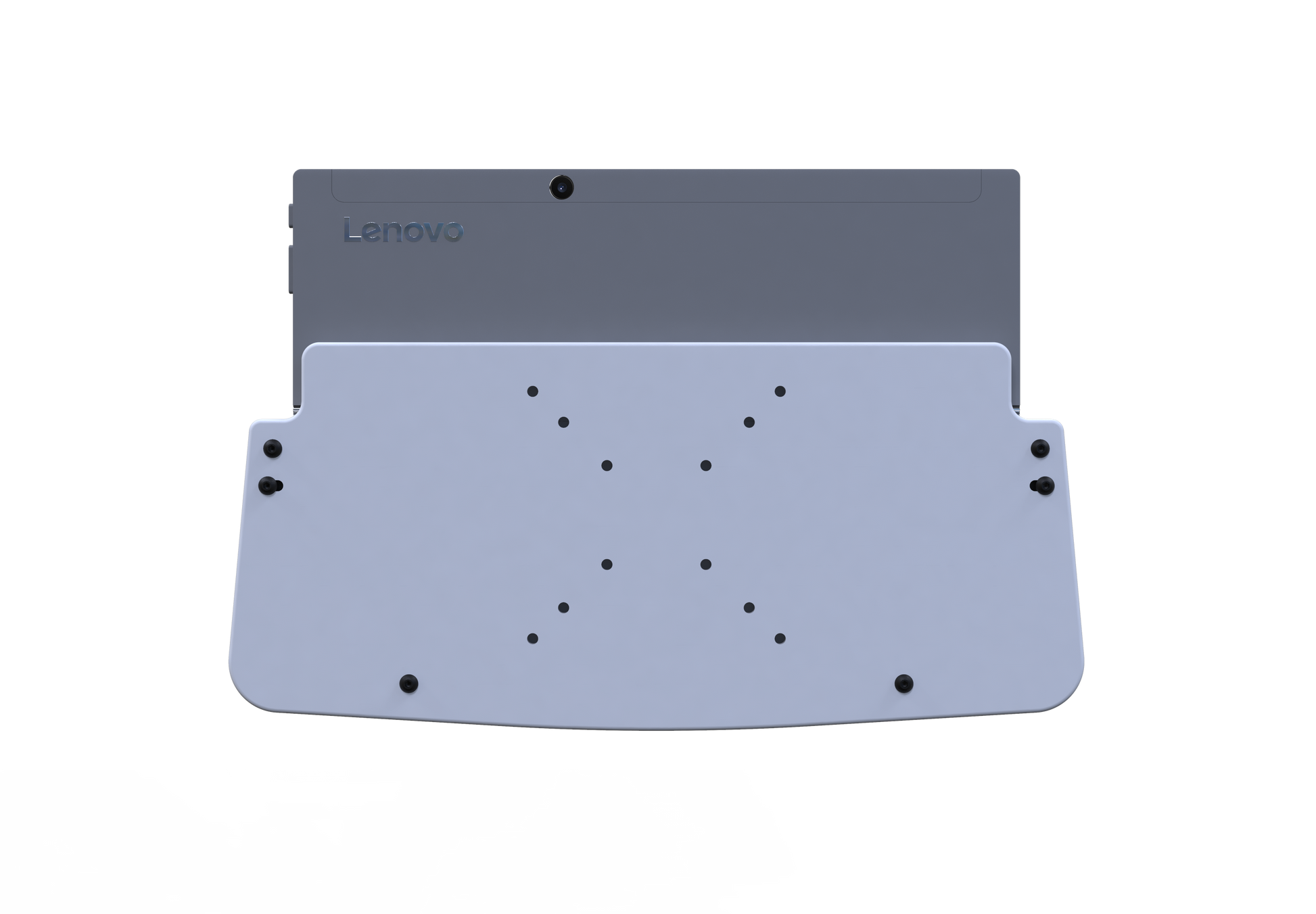

The Edge Series tablet holder is our original design tablet holder. The Edge series was designed for your tablet to easily slide in and out of the holder in landscape mode, and still give you access to all the buttons, ports, cameras, sensors and more of your tablet. If you are using the Edge series holder in your vehicle but do not have the tablet in the holder you still can gain access to the dash controls due to the U-shaped design. All of the Edge series holders are adjustable so you can adjust the width and depth of the holder to accommodate cases or other covers on your tablet. All of our Edge holders come with both AMPS and VESA 75mm mounting so you are able to use our holders with virtually any mount on the market whether it be for home, auto, business, and more! The Edge holder comes in Black or White in either a gloss or matte finish.

FEATURES

Adjustable design

Each Edge series holder allows you to adjust the width and depth of the holder to fit your tablet accordingly. The Edge holder uses nylon spacers that fit between the acrylic faceplate and backplate and are mounted in slotted holes on the backplate allowing them to slide in or out depending on the width of your tablet. Included in the Edge holder is a set of variable thickness spacers that can be swapped out so you can match the thickness of your tablet (with or without a case) to the thickness of the holder.

VESA and AMPS mounting

Our Edge series holders come with both VESA 75mm and AMPS mounting configurations. VESA 75mm is used commonly for monitor mounts for home, business, and more. The AMPS mounting configuration is used mostly for auto, marine, cycle, and other transportation types. The AMPS pattern is used with many mobile mounting device companies, which means you can mount our holder to their mount. The AMPS pattern consists of 4 8-32 threaded holes on the backside of the holder. The VESA 75mm consists of 4 countersunk holes where an 8-32 bolt is used. Hardware is included with each holder.

Felt lined

We use felt that is die cut out and placed inside of the Edge holder so you don’t have to worry about damaging your tablet as you slide it in and out of the holder. The felt is similar to the material you would see inside of a jewelry case and is strategically placed inside of the holder.

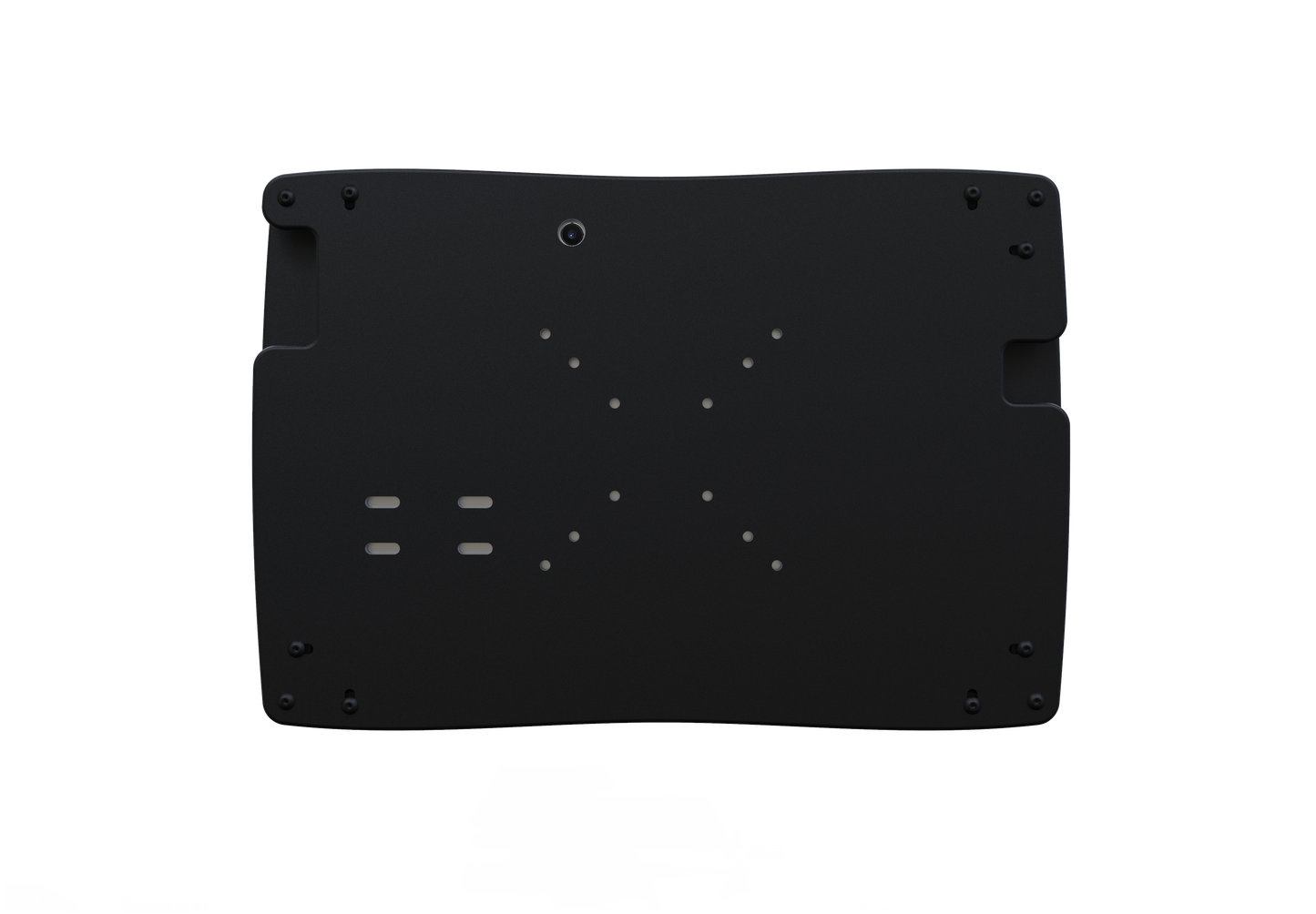

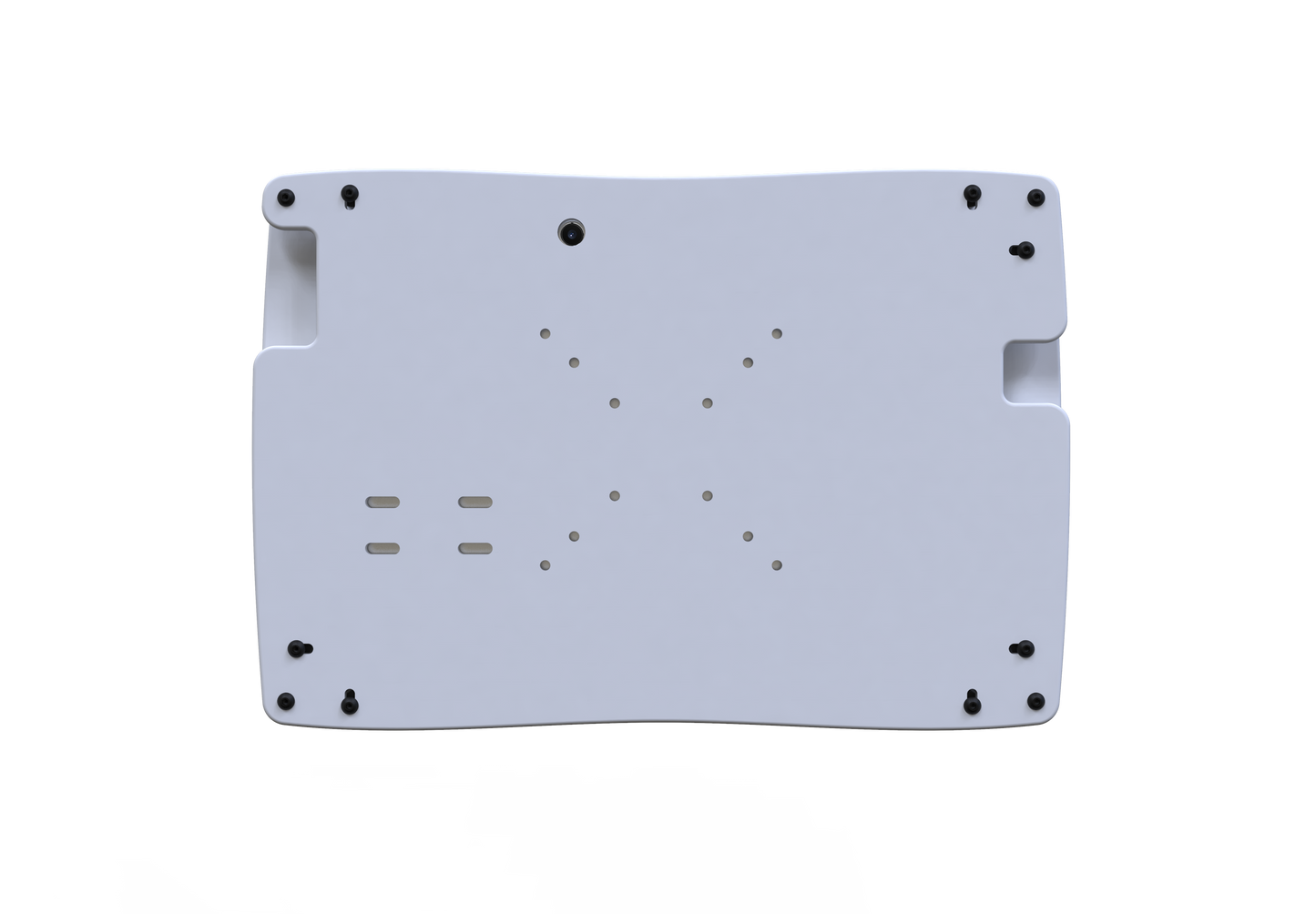

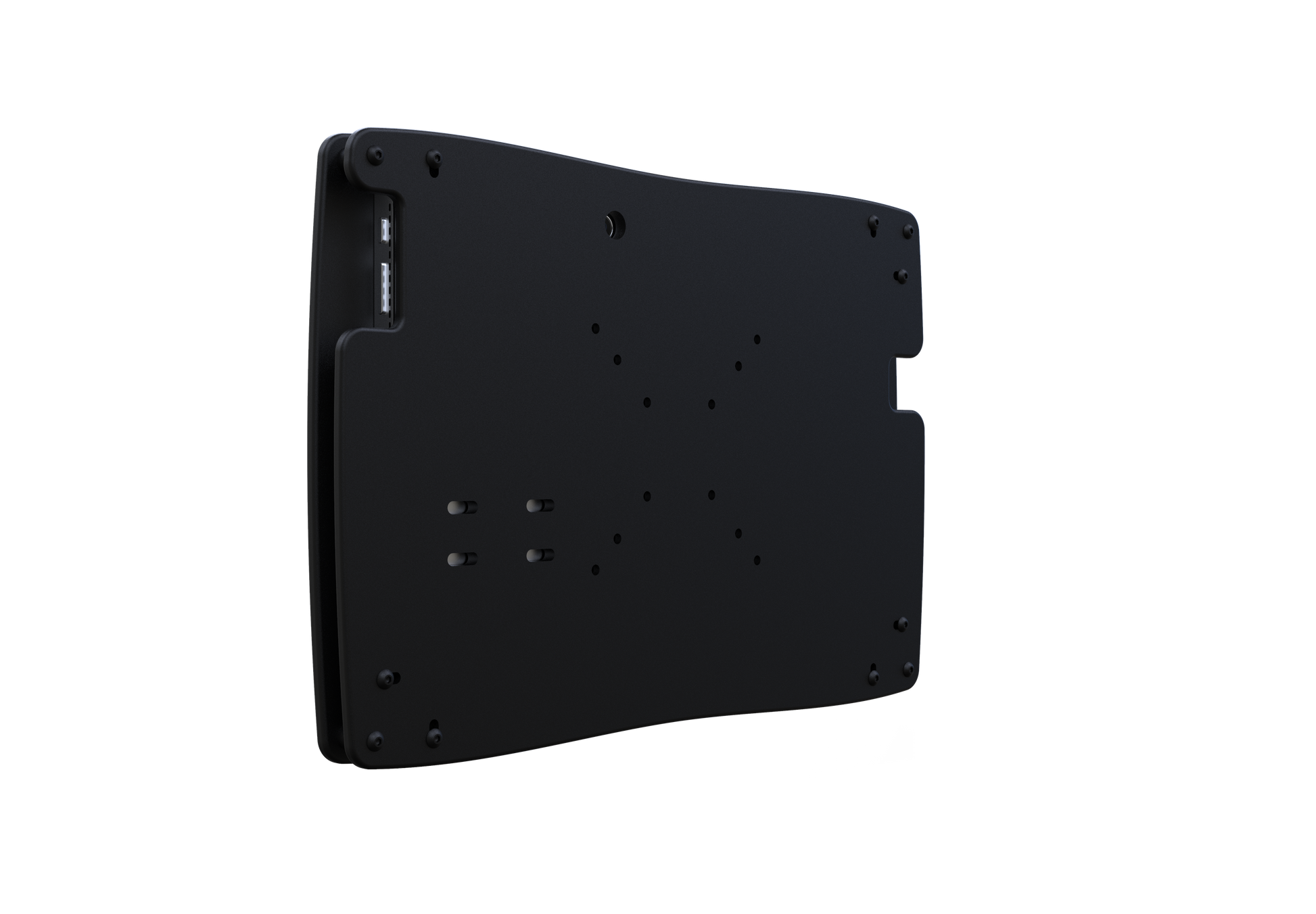

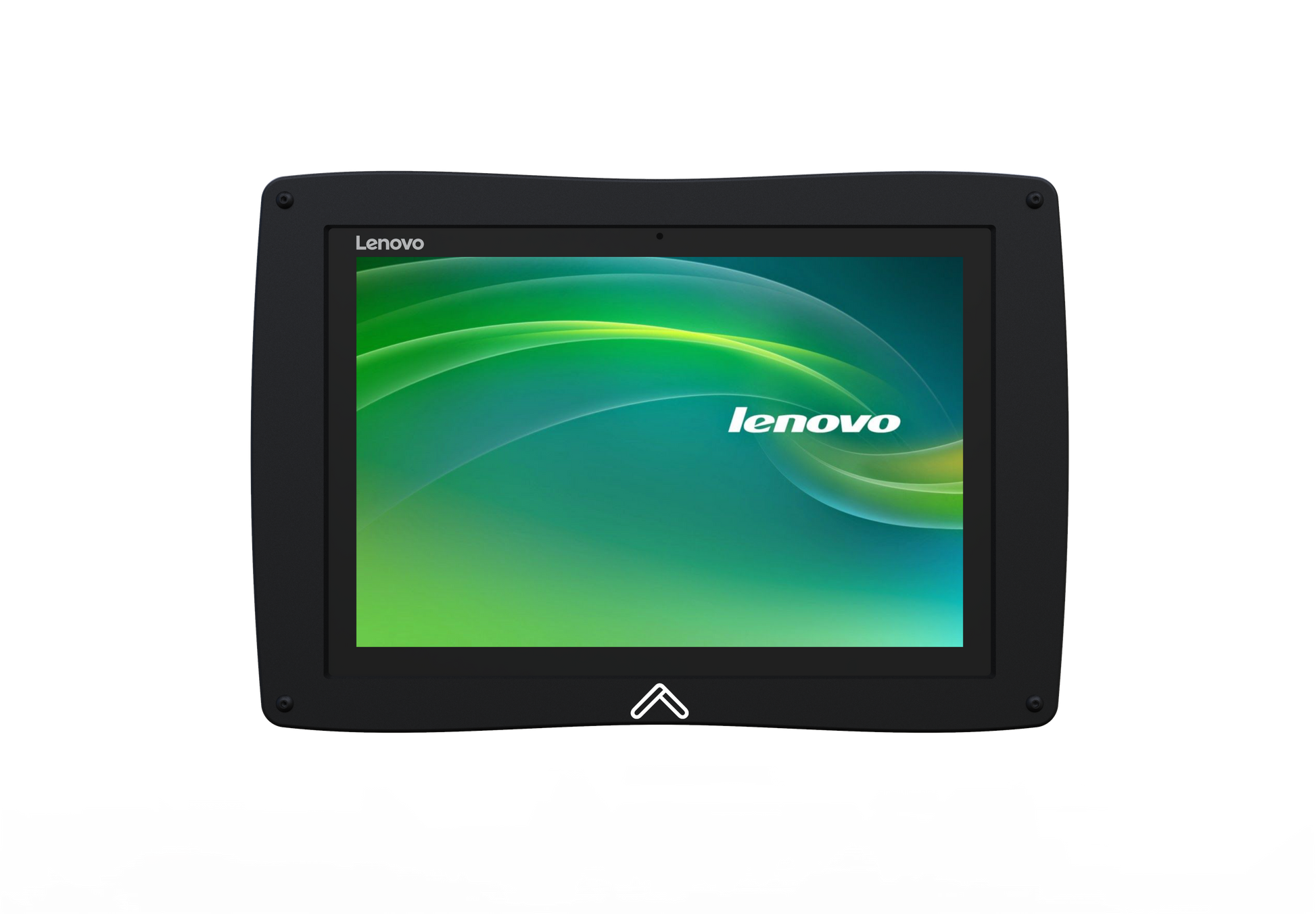

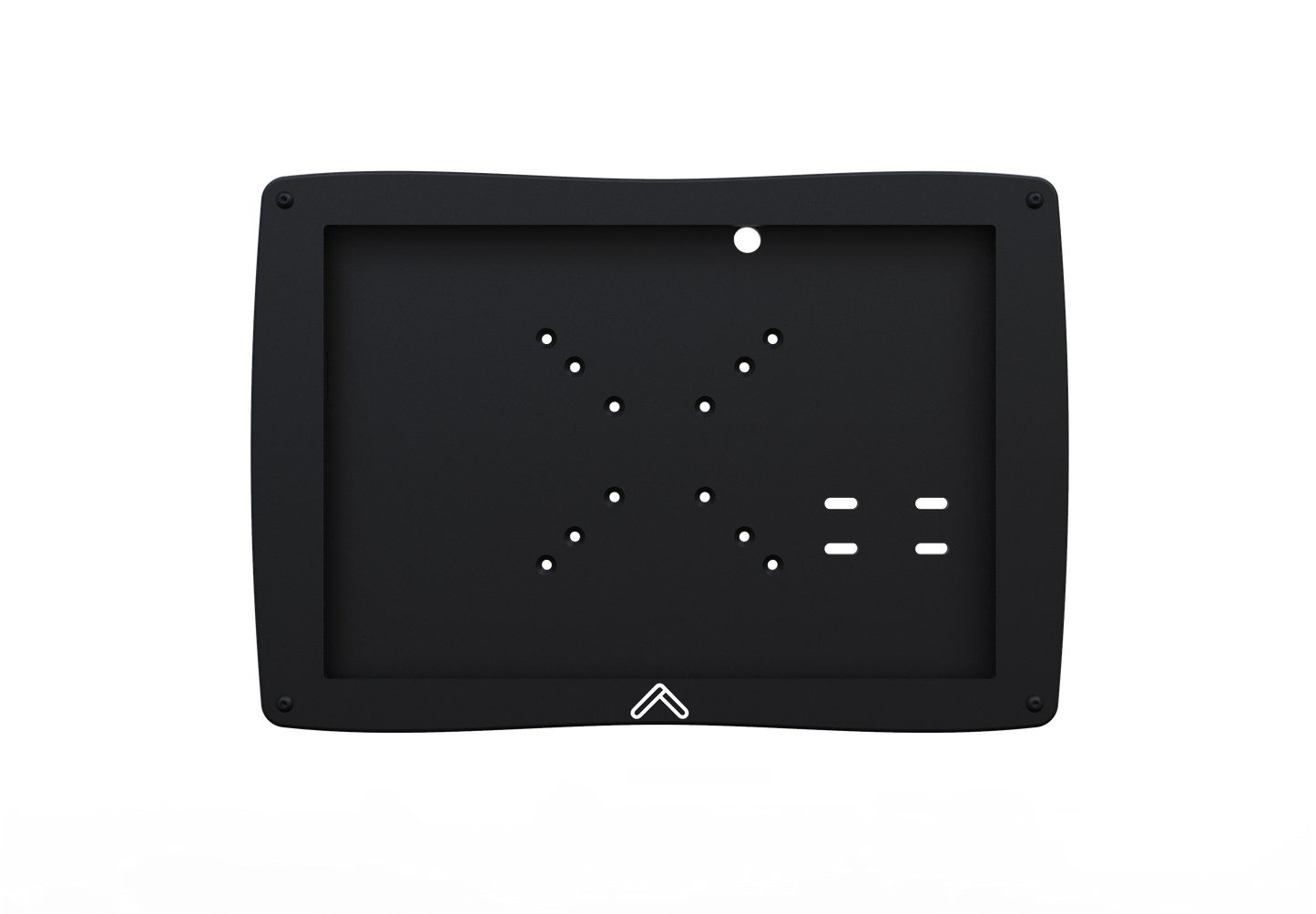

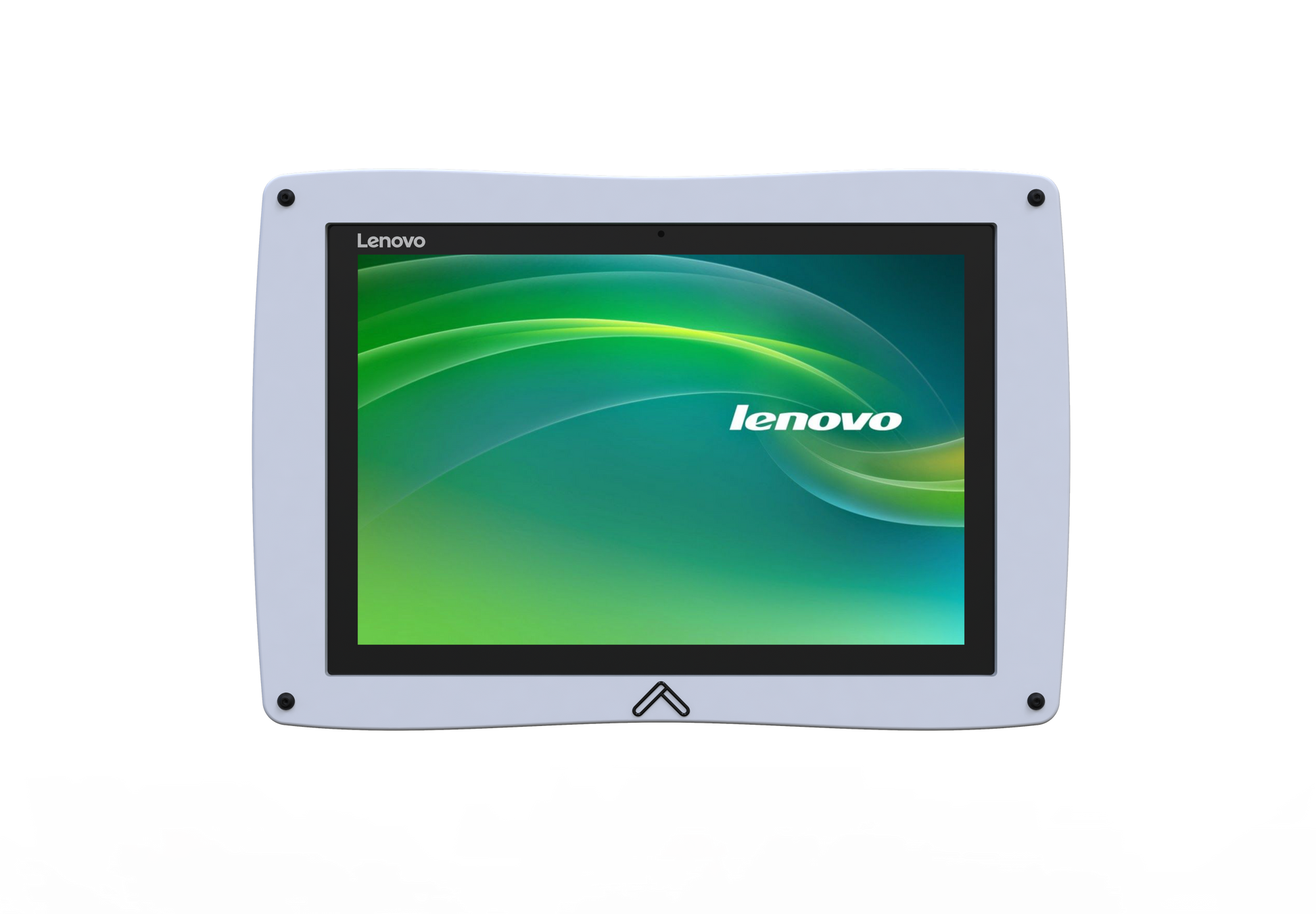

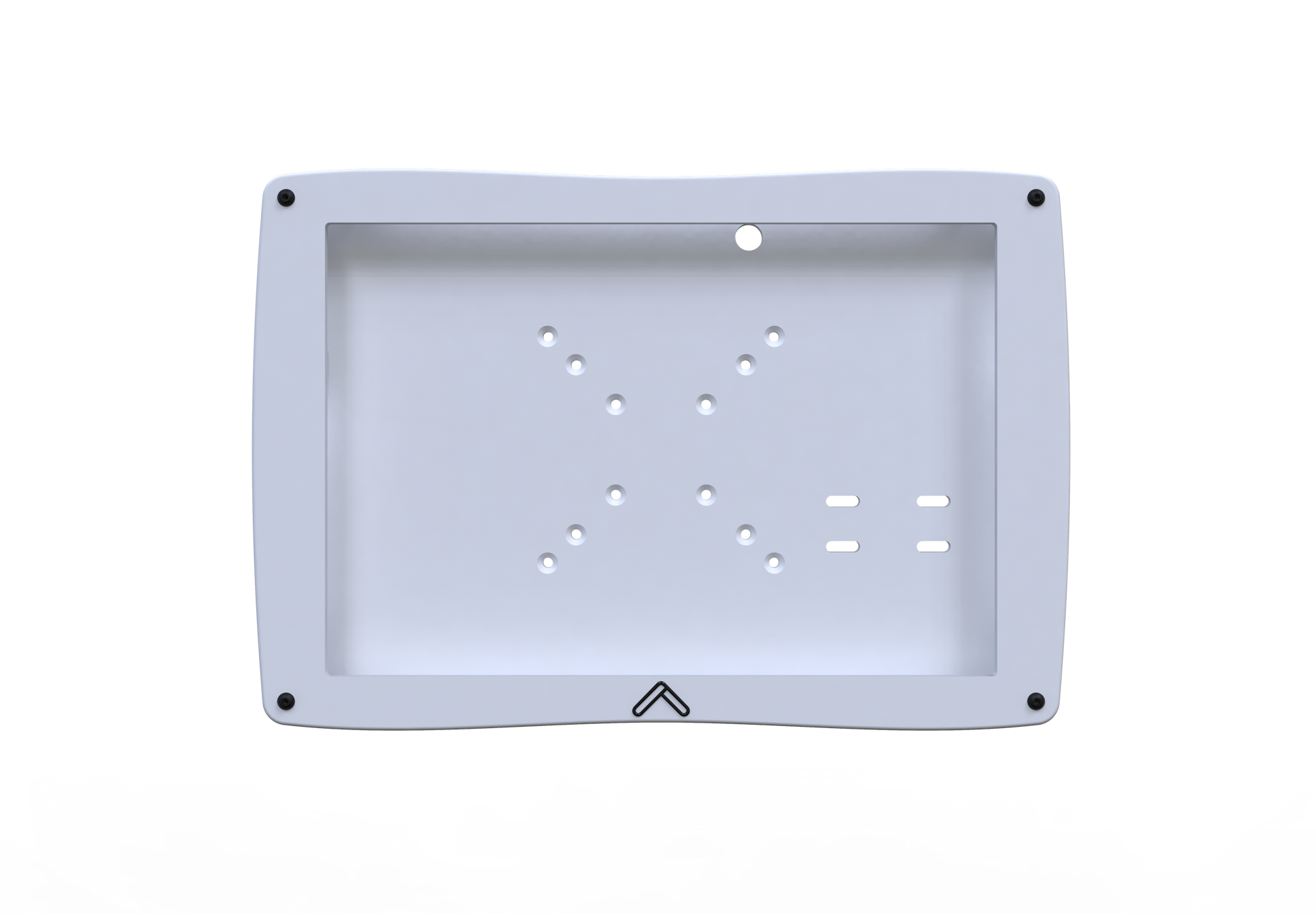

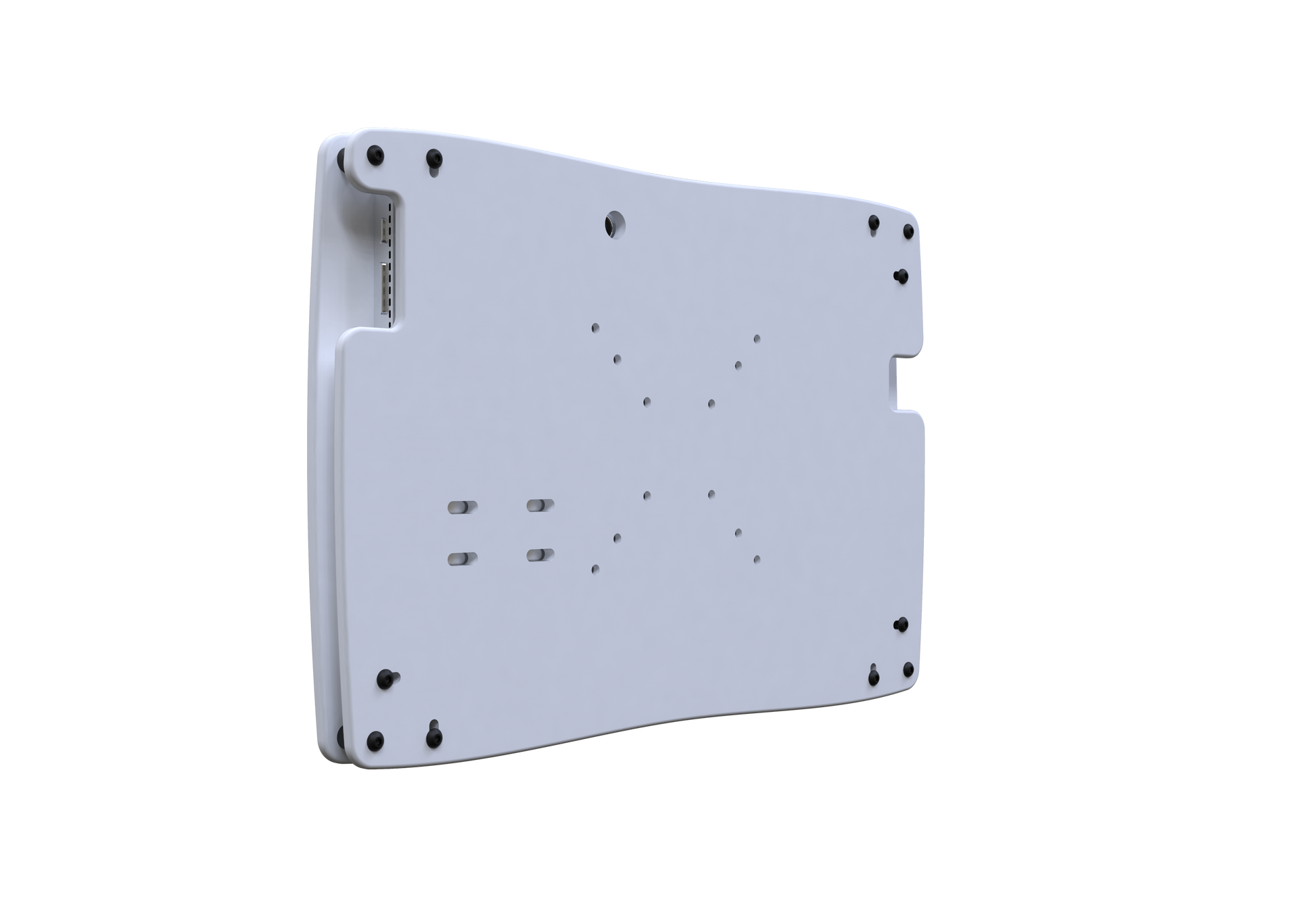

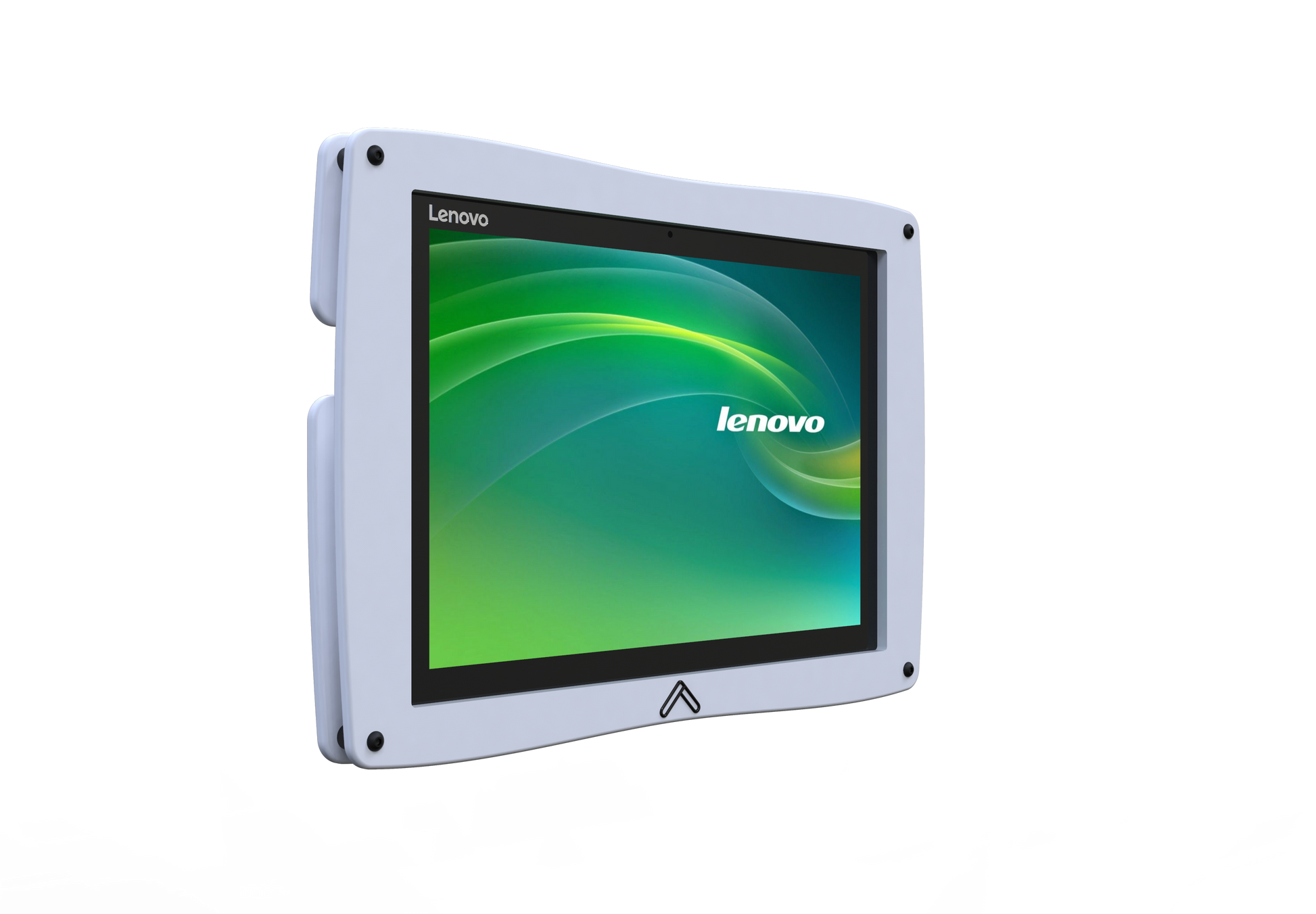

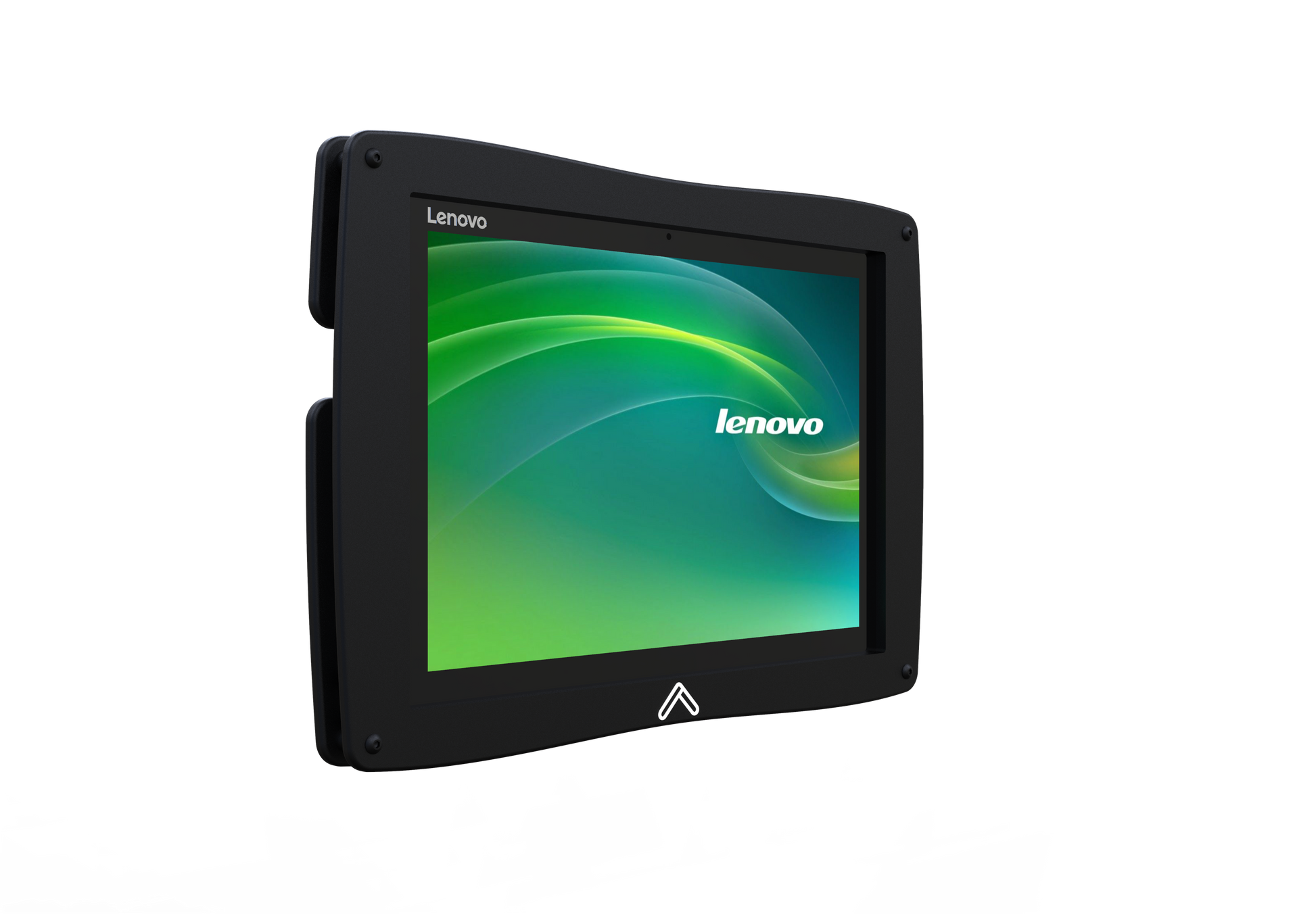

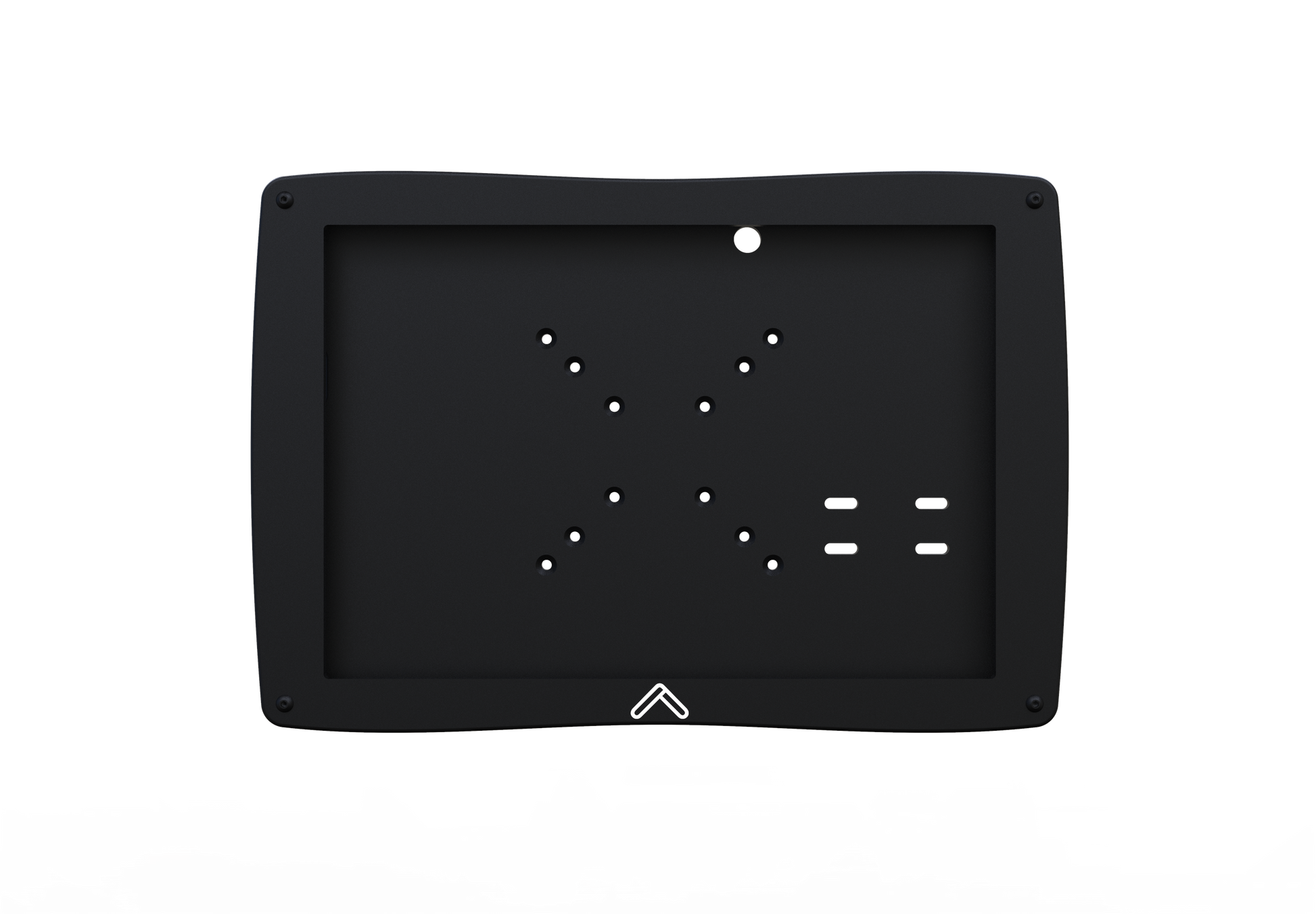

The Fit series tablet holders were designed to allow a tablet to be mountable and keep it secure. The Fit series works by having a faceplate mounted to a backplate using spacers in between. The spacers can move left to right and top to bottom in slotted holes on the backplate which allows you to adjust the width and height of the tablet. Each Fit series enclosure comes with a variety of height spacers allowing you to also adjust the thickness of the holder to accommodate any cases that you might have on your tablet. The faceplate is secured to the backplate with tamper proof screws that use a special tool included with each kit to remove, which keeps the tablet secure within the holder. There are a variety of notches on the backplate to allow access to buttons, ports, and cameras of your specific tablet.

FEATURES

Tablet Security

The Fit series uses tamper proof hardware to assemble the faceplate to the backplate and the side tensioner spacers. To remove or insert the tablet in the holder you must use the included tamper proof key to remove the screws. If you are looking to keep your tablet secure, but don’t need to frequently remove it for servicing then the Fit Series is your best option.

VESA and AMPS mounting

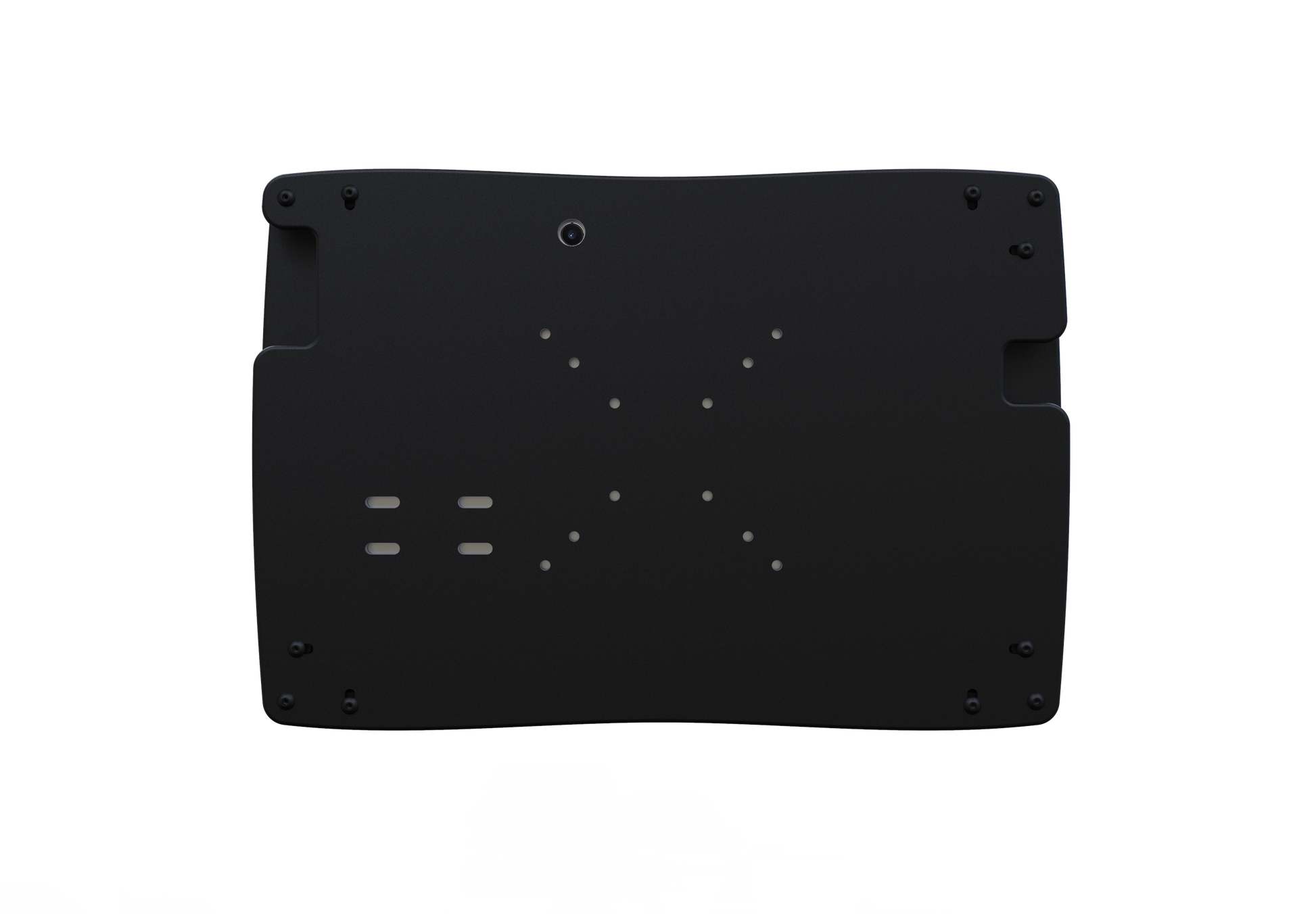

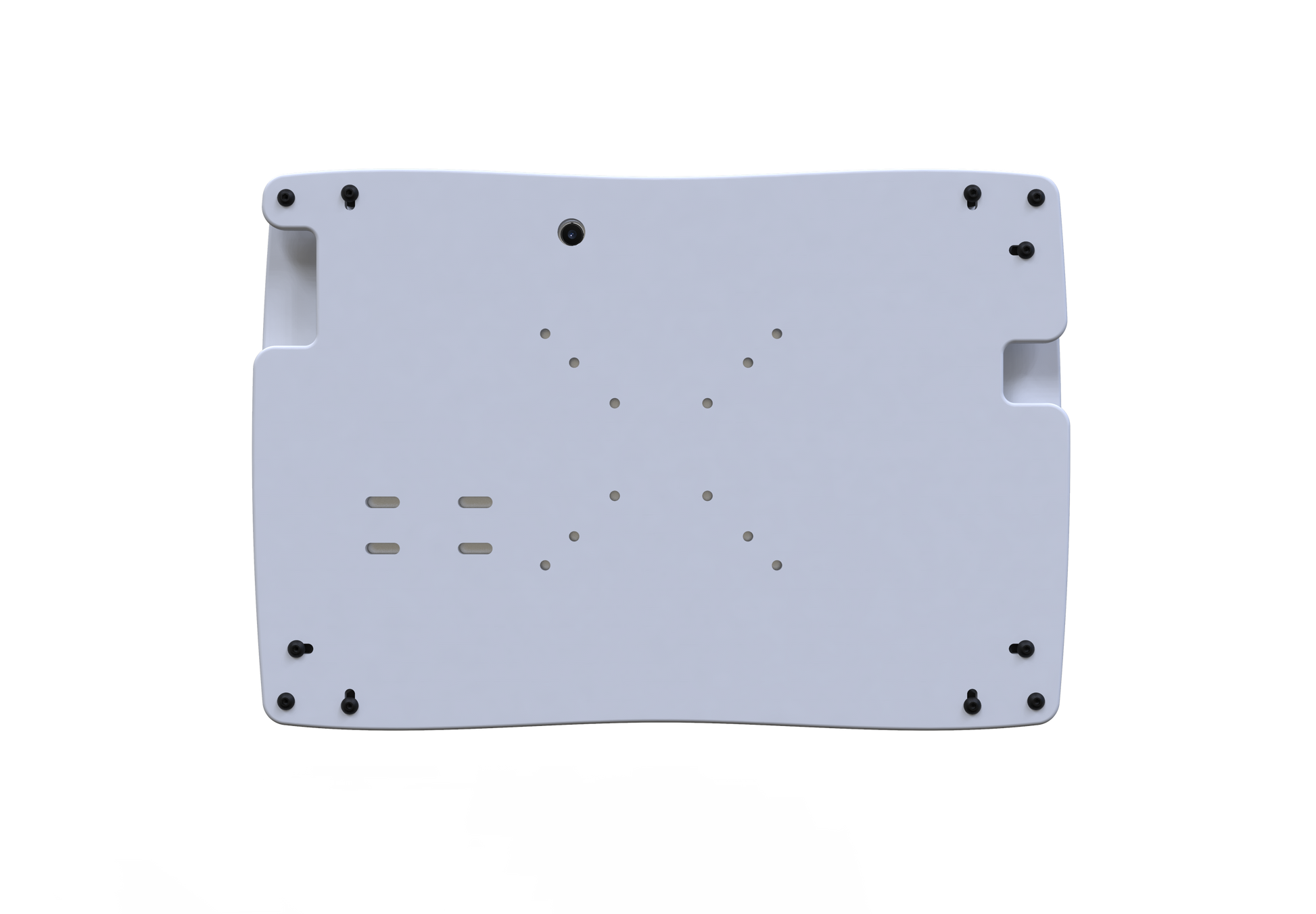

Our Fit series holders come with VESA 75mm, VESA 100mm and AMPS mounting configurations. VESA 75mm and VESA 100mm are used commonly for monitor mounts for home, business, and more. The AMPS mounting configuration is used mostly for auto, marine, cycle, and other transportation types. The AMPS pattern is used with many mobile mounting device companies, which means you can mount our holder to their mount. The AMPS pattern consists of 4 8-32 threaded holes on the backside of the holder. The VESA patterns consists of 4 countersunk holes where an 8-32 bolt is used. Hardware is included with each holder.

Felt lined

We use felt that is die cut out and placed inside of the Edge holder so you don’t have to worry about damaging your tablet as you slide it in and out of the holder. The felt is like the material you would see inside of a jewelry case and is strategically placed inside of the holder.

Access to Tablet Features

Each Fit holder is designed around the tablet you are using. All of the buttons, ports, sensors, cameras and more of the tablet are accessible in the enclosure. If you are wanting to go with a holder that blocks off access or secures the charging cord look at our Forged Series holders.

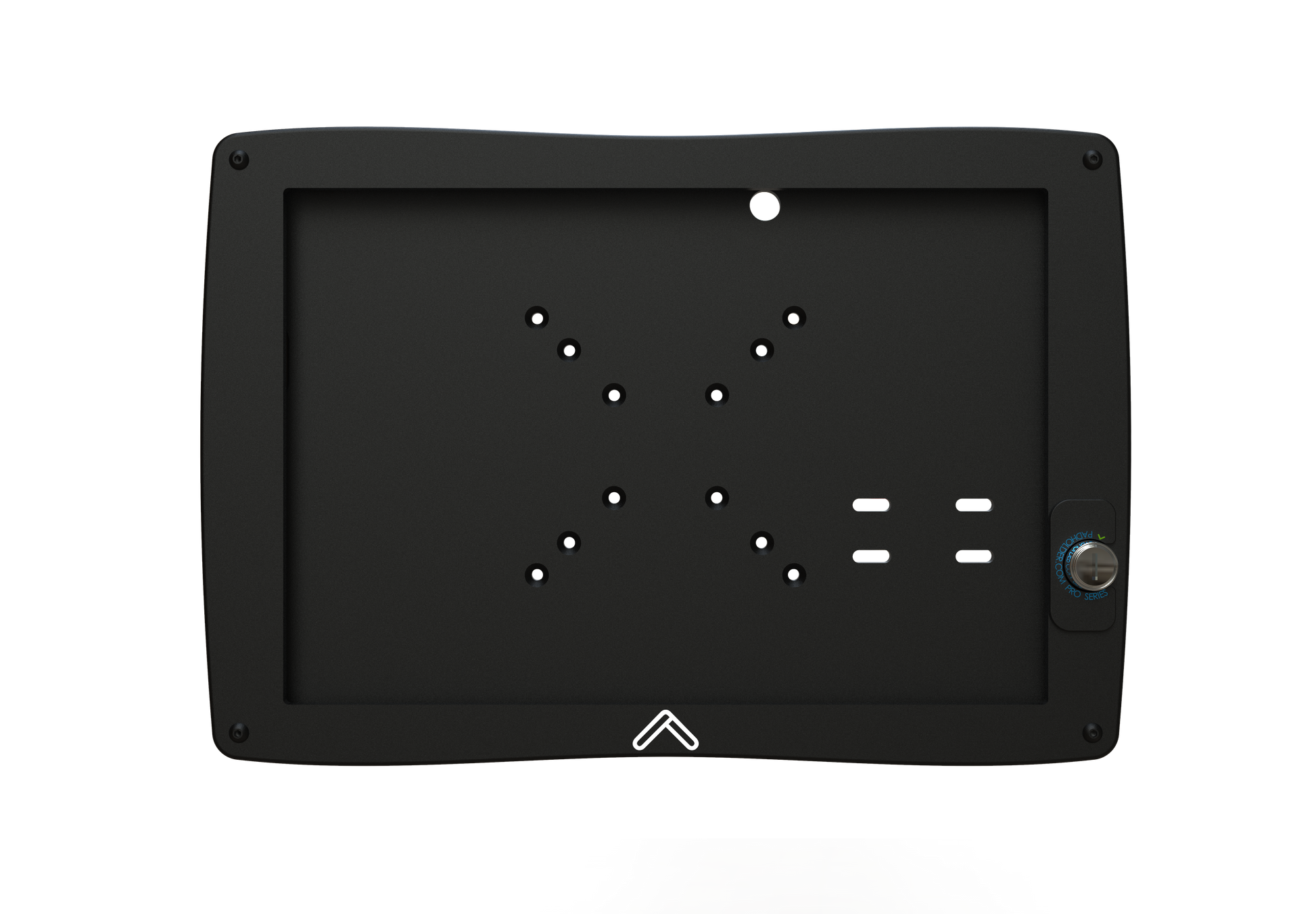

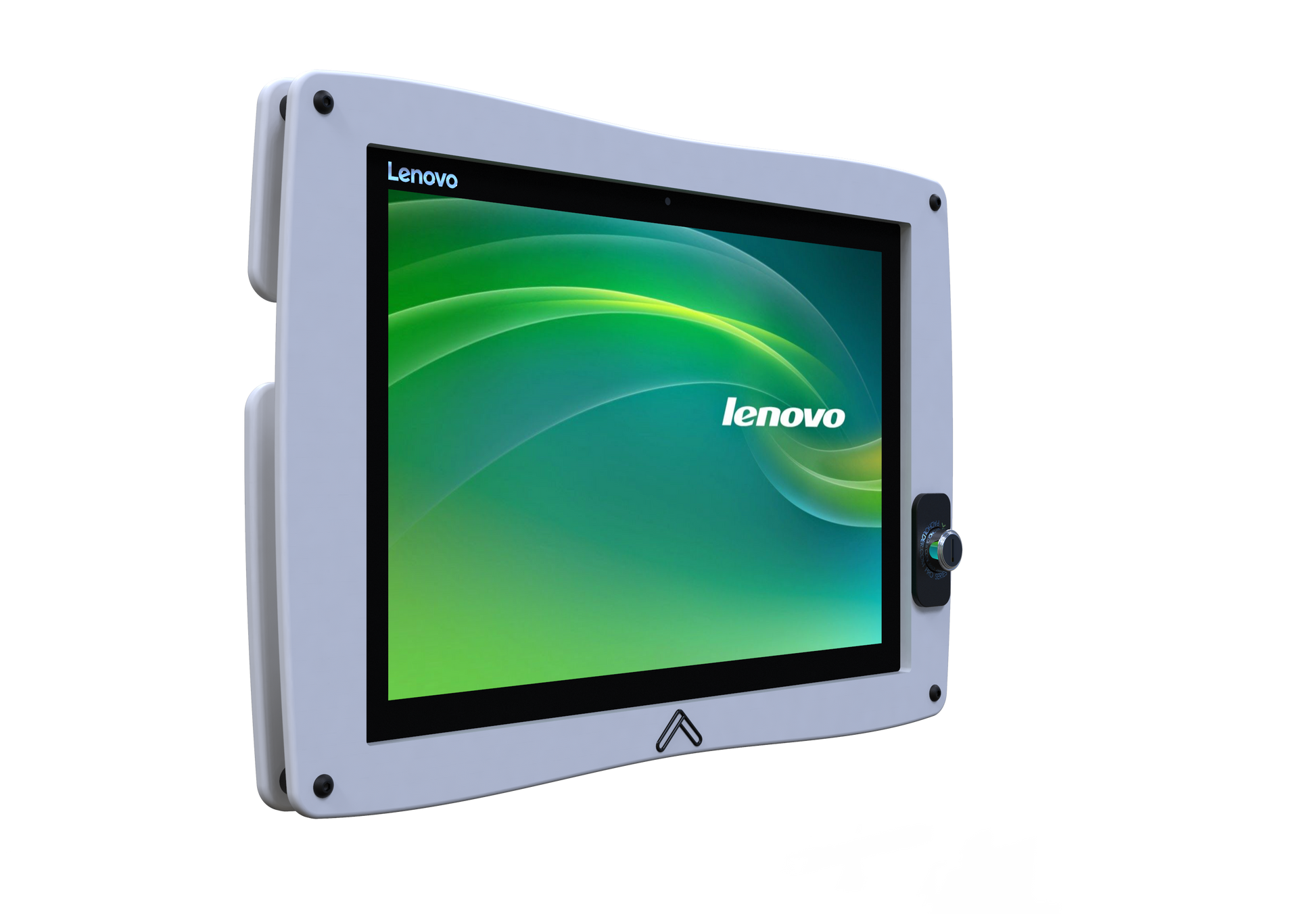

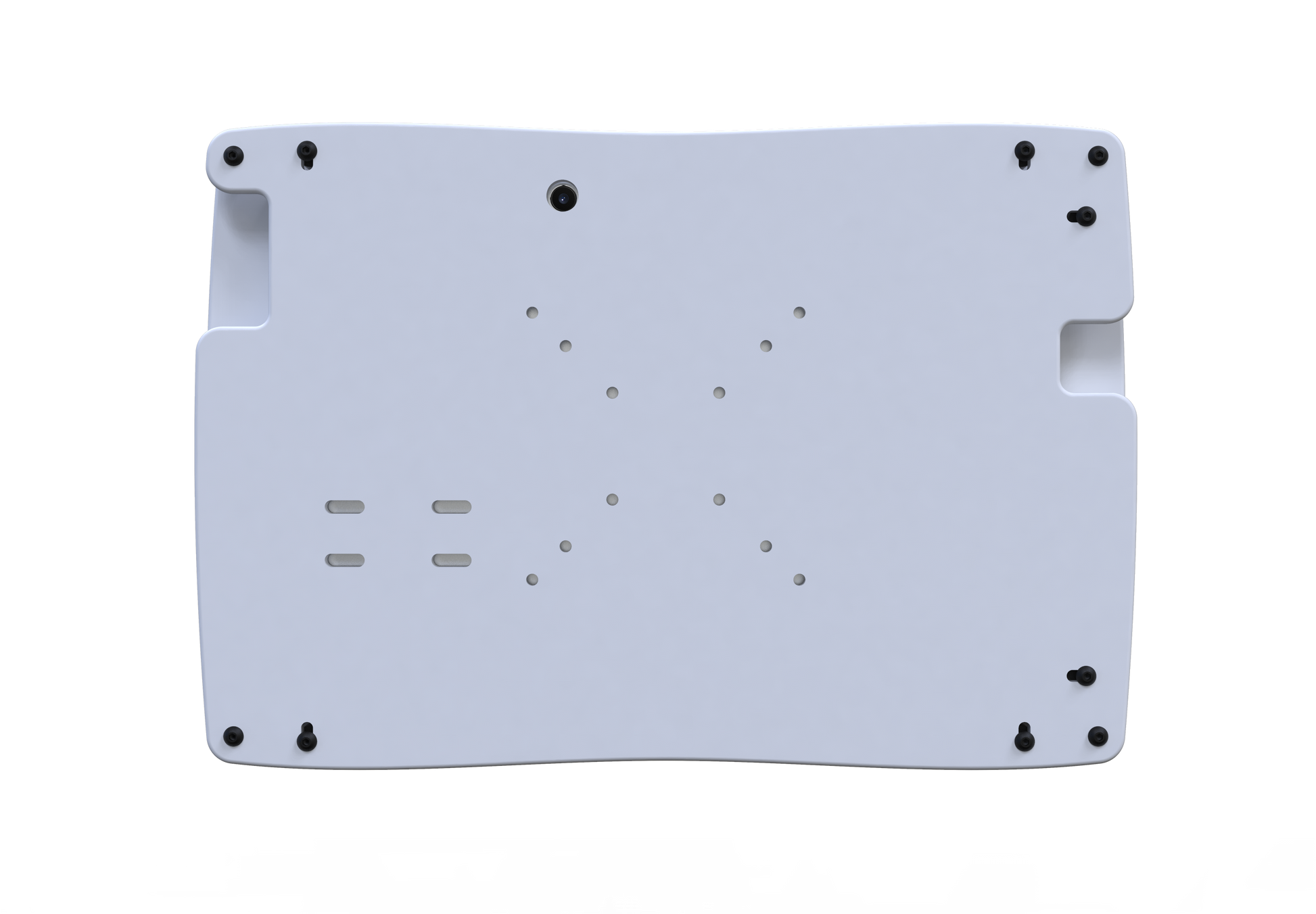

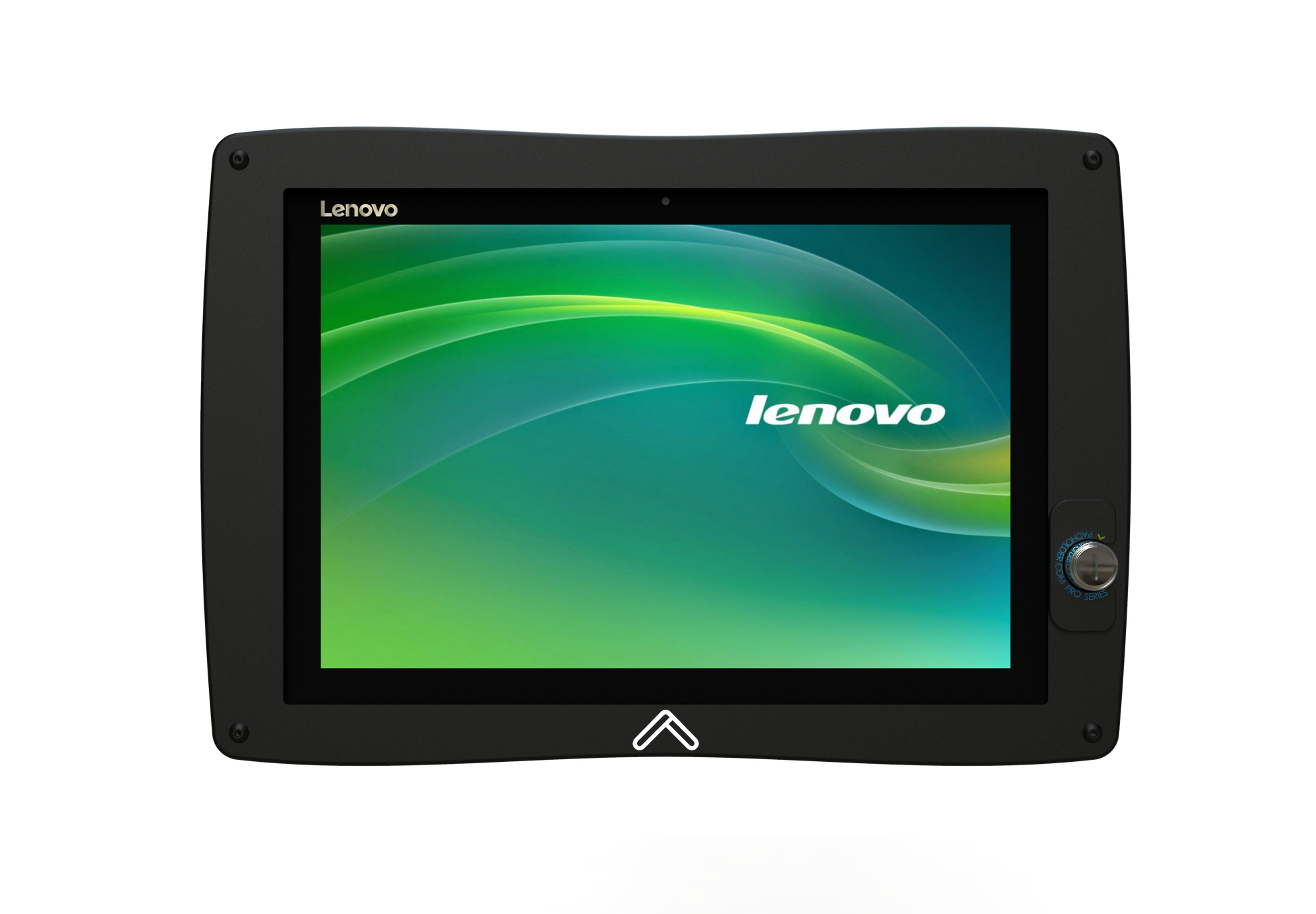

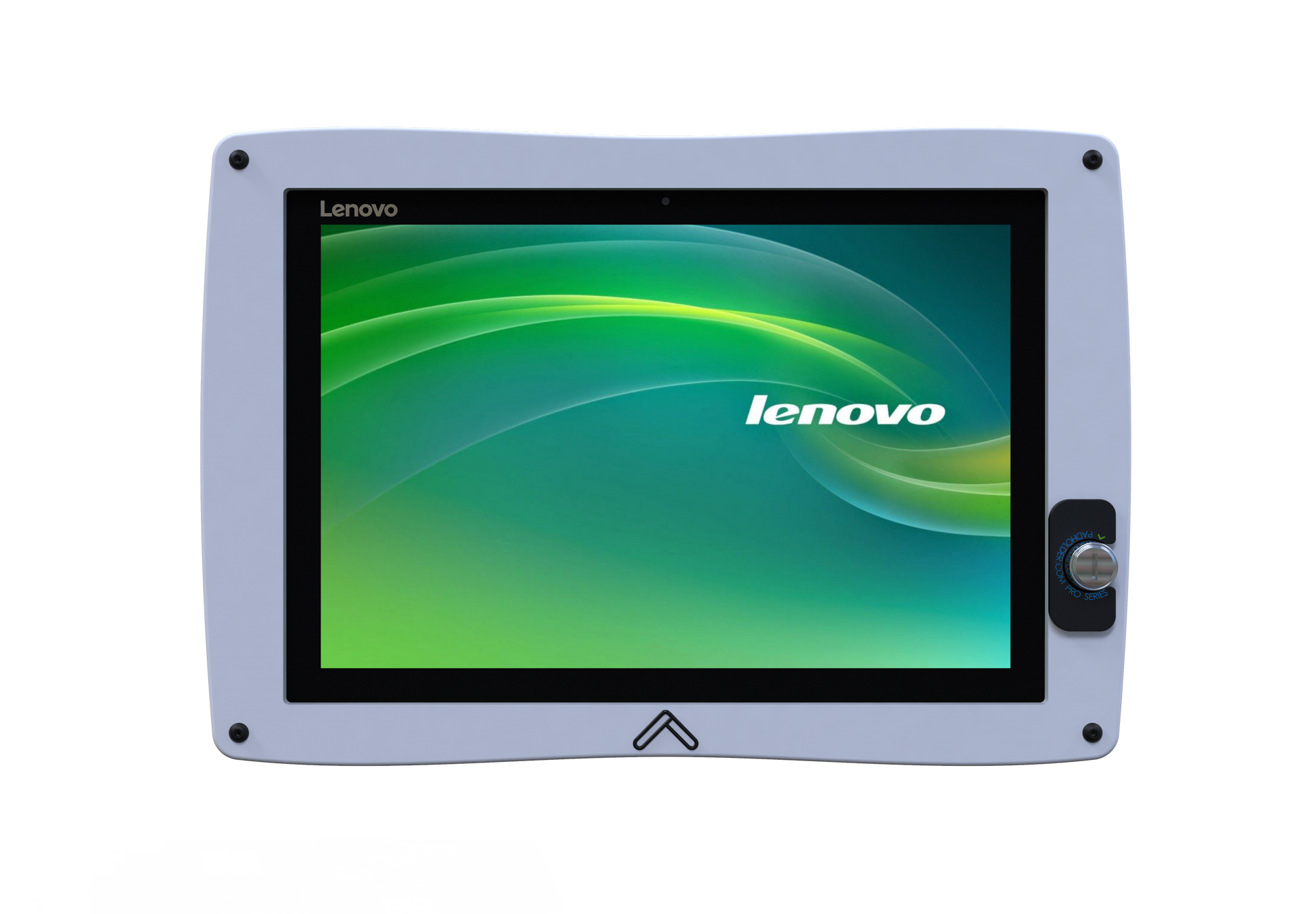

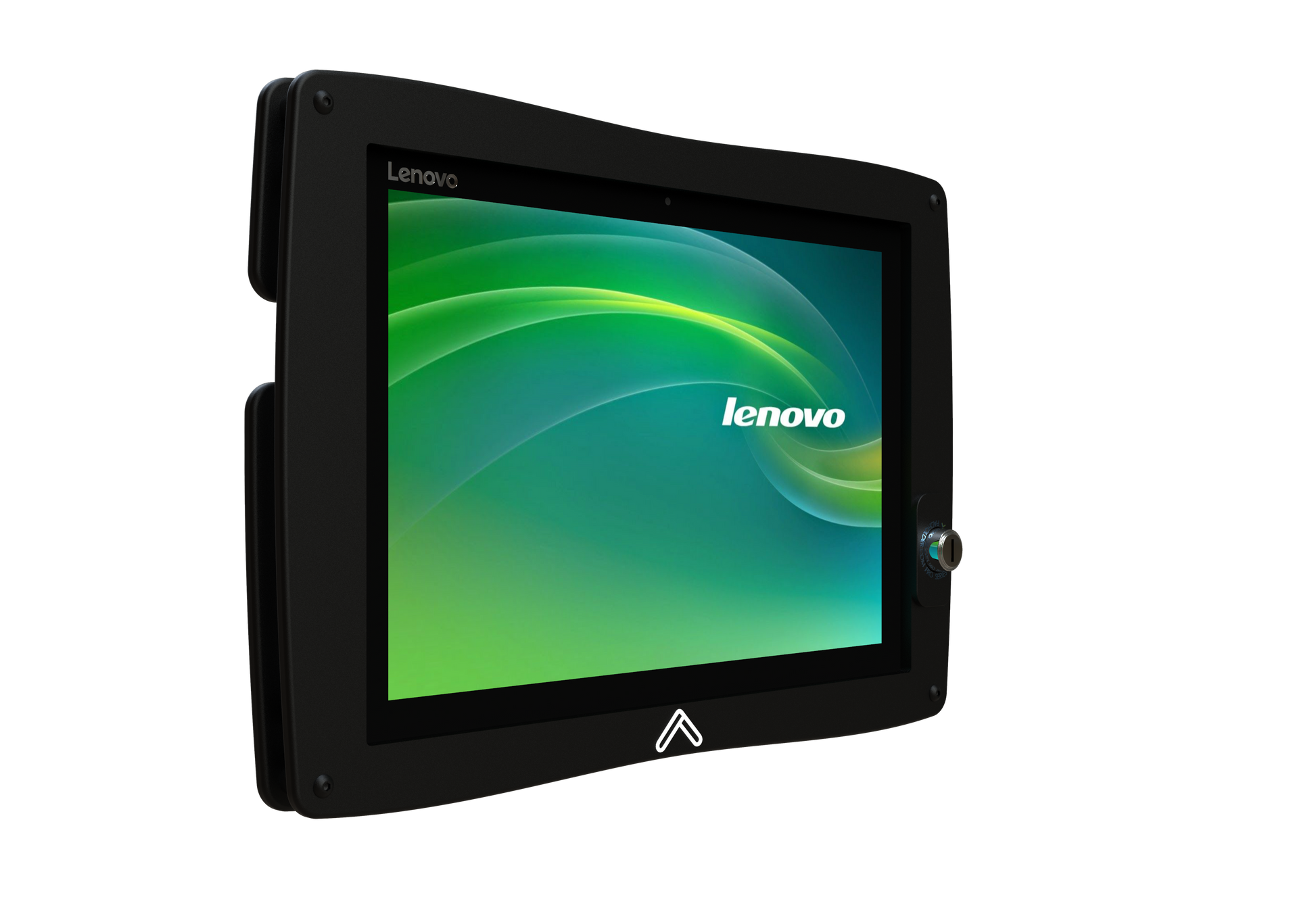

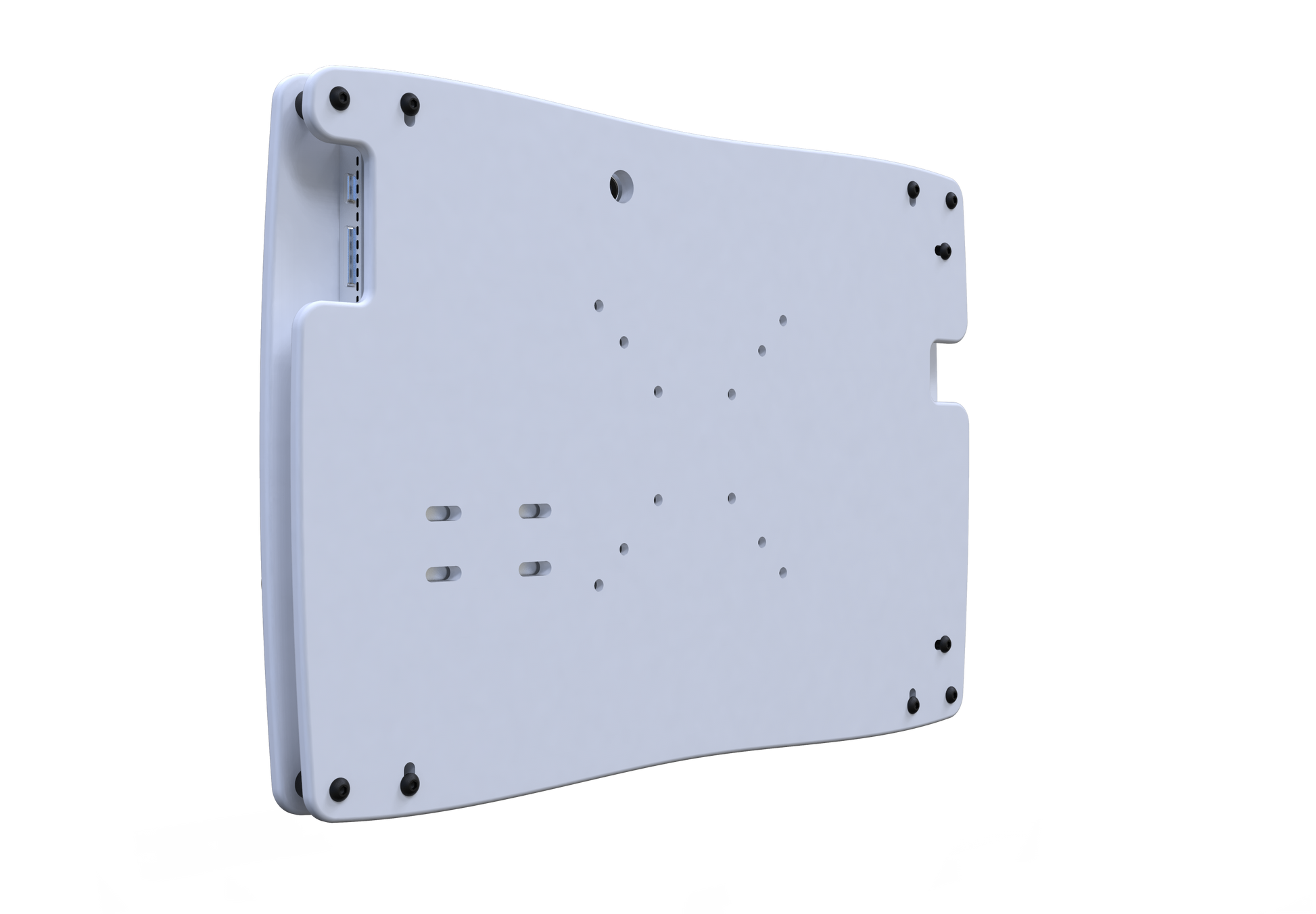

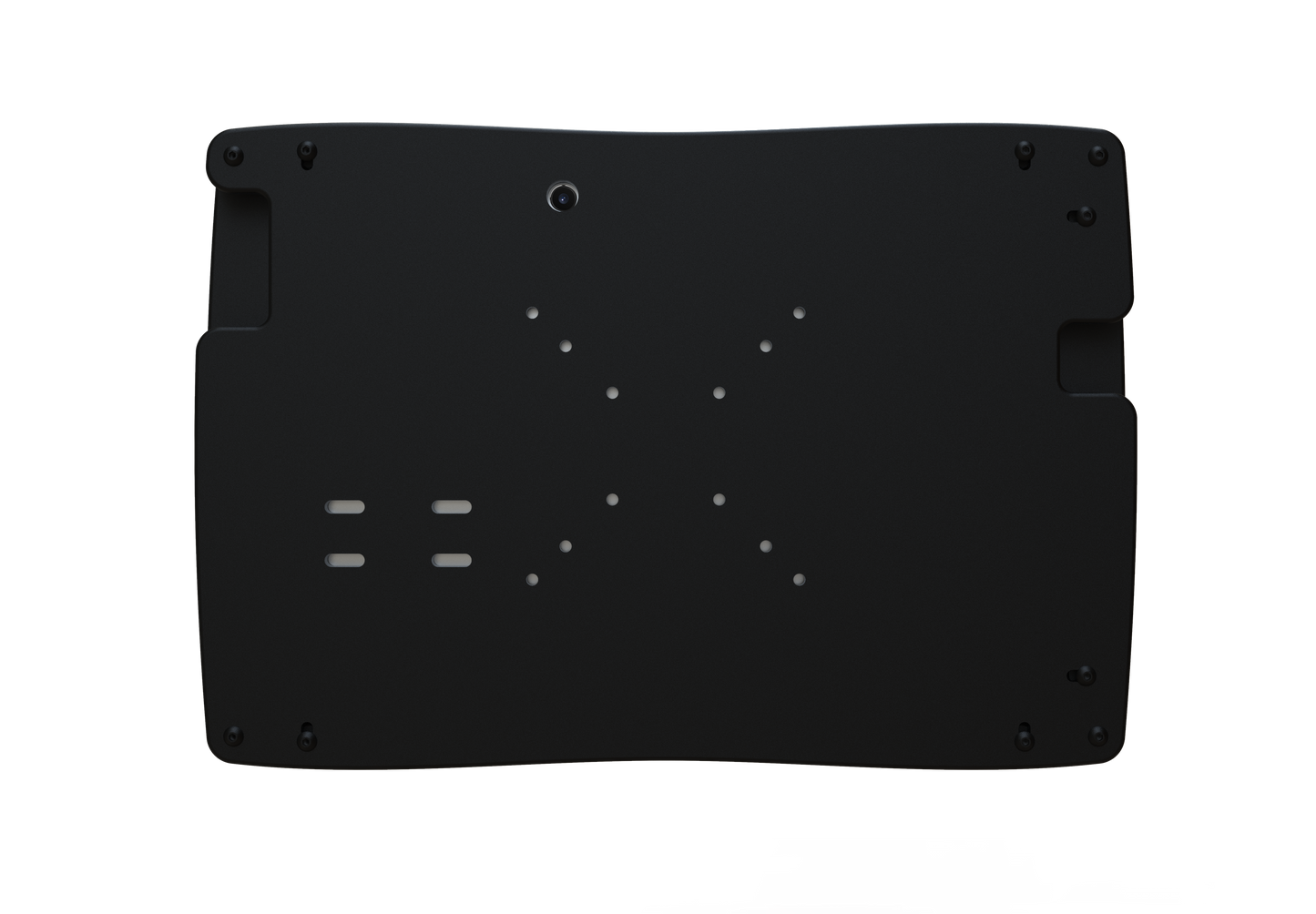

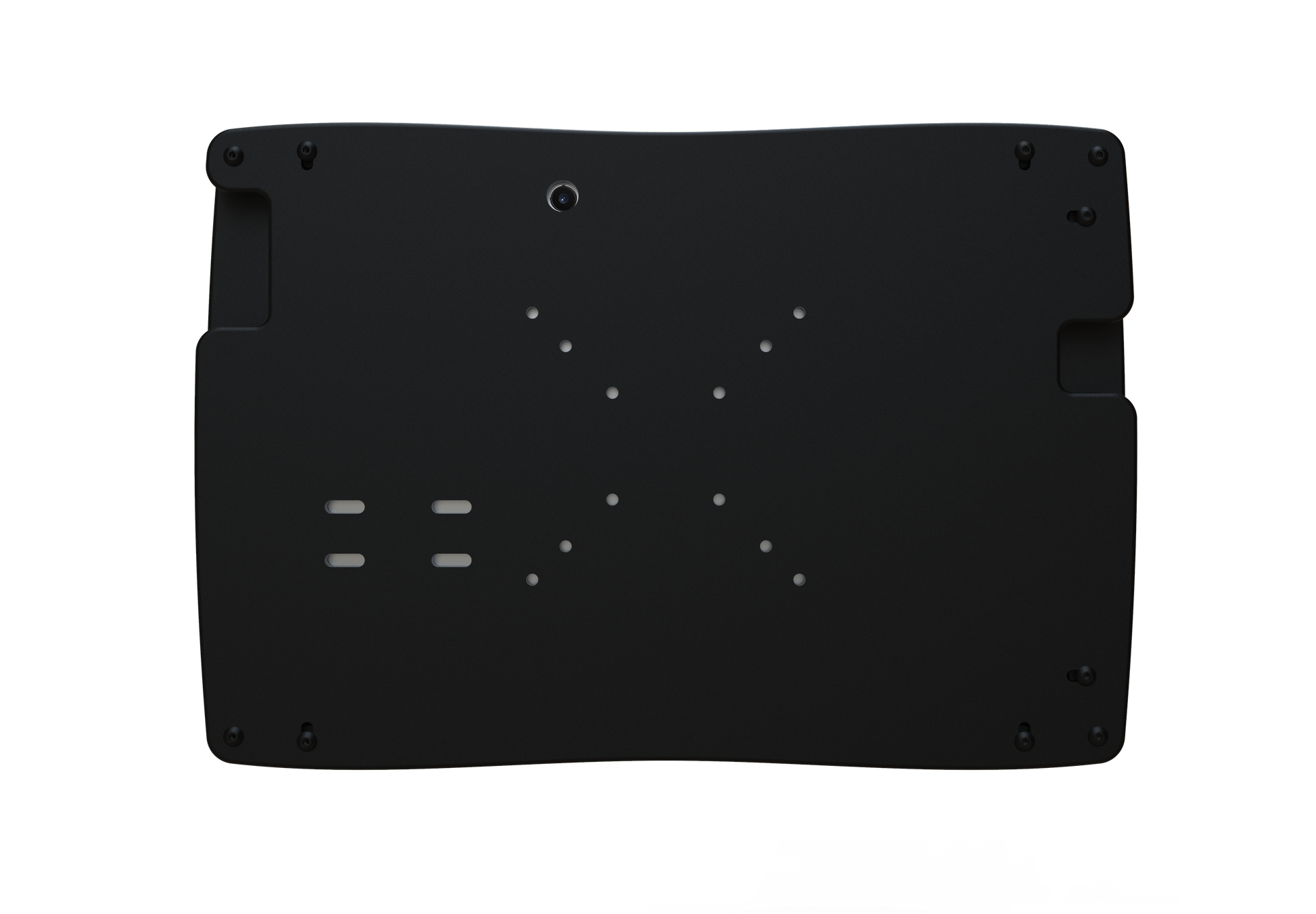

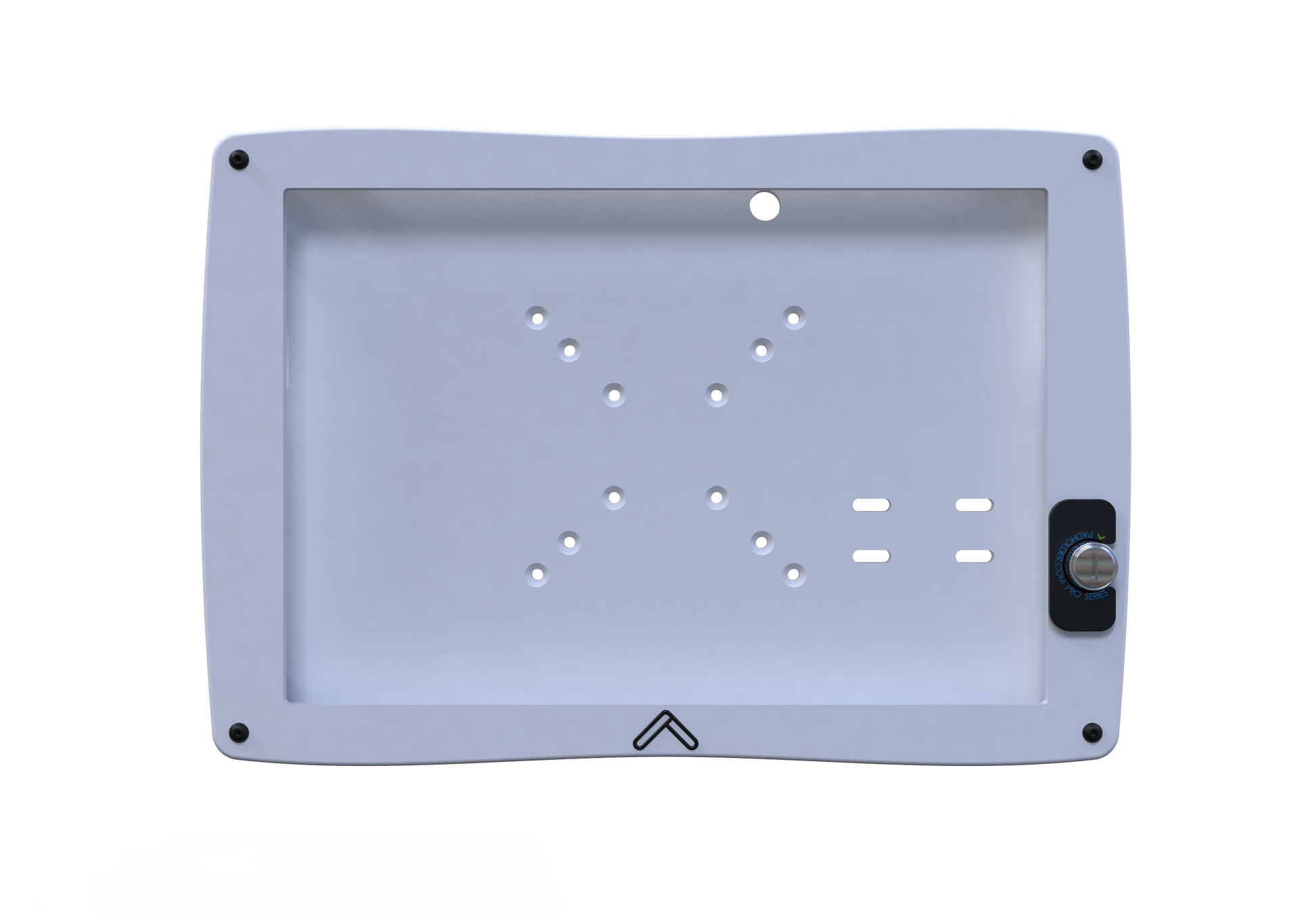

The Pro series holder was designed for customers looking to mount their tablet, but also keep it secure with the option to remove it from the holder easily. The Pro series holder shares many of the same features that the Fit series has with one main difference of a keyed lock. The keyed lock allows the user to slide the tablet inside of the holder and lock in place. To remove the tablet all you need to do is unlock the lock and slide the tablet out.

Adjustability

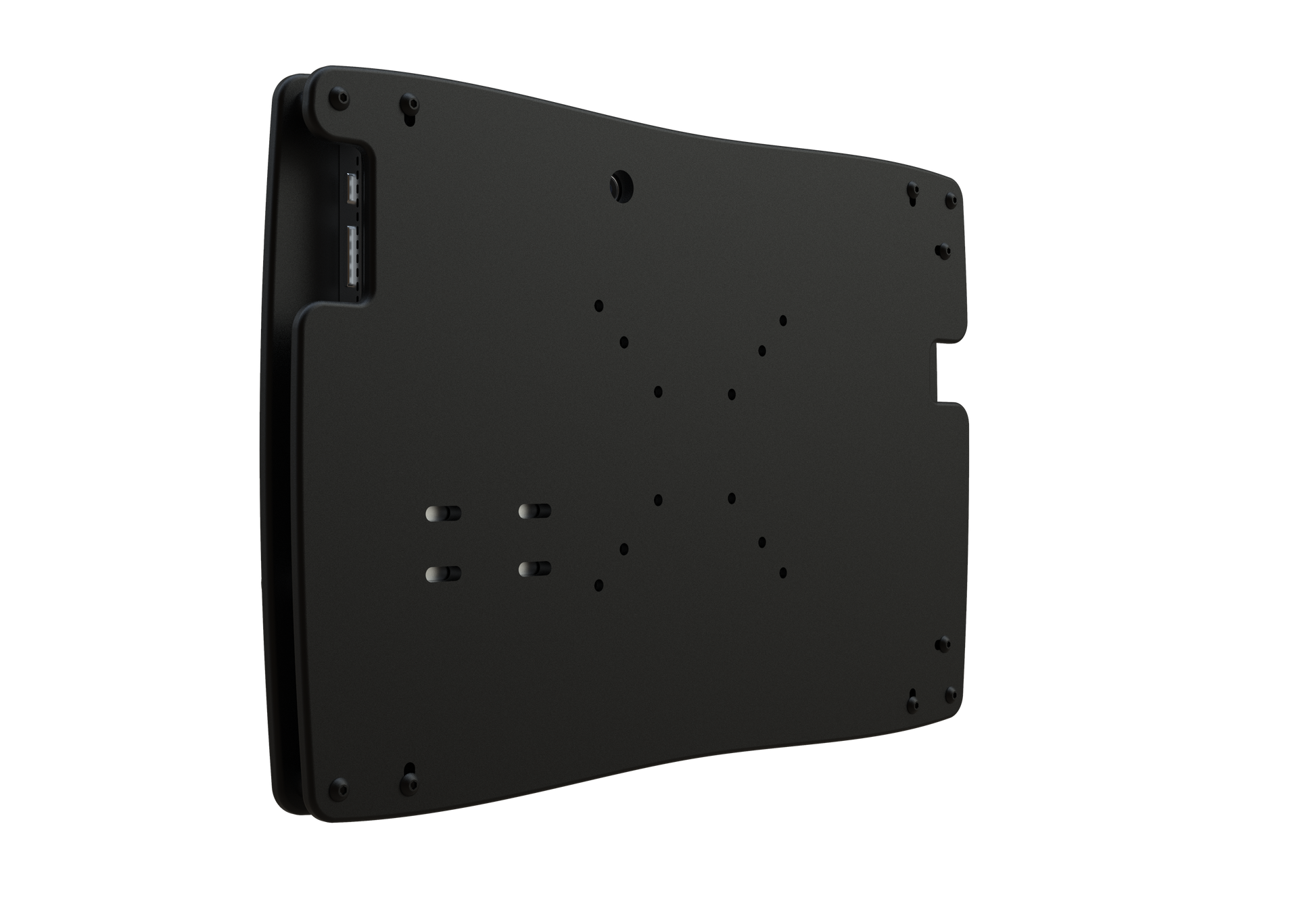

The Pro series holders are designed with a faceplate and backplate using spacers between the two that adjust to fit the tablet. There are slots in the backplate allowing the spacers to adjust so you can fit the holder to your tablet with or without a protective case installed. Included with the holders hardware kit is spacers in various lengths that will also allow adjustability of how thick the Pro holder is to fit the tablet.

VESA and AMPS mounting

Our Fit series holders come with VESA 75mm, VESA 100mm and AMPS mounting configurations. VESA 75mm and VESA 100mm are used commonly for monitor mounts for home, business, and more. The AMPS mounting configuration is used mostly for auto, marine, cycle, and other transportation types. The AMPS pattern is used with many mobile mounting device companies, which means you can mount our holder to their mount. The AMPS pattern consists of 4 8-32 threaded holes on the backside of the holder. The VESA patterns consists of 4 countersunk holes where an 8-32 bolt is used. Hardware is included with each holder.

Felt lined

We use felt that is die cut out and placed inside of the Pro holder so you don’t have to worry about damaging your tablet as you slide it in and out of the holder. The felt is like the material you would see inside of a jewelry case and is strategically placed inside of the holder.

Access to Tablet Features

Each Pro holder is designed around the tablet you are using. All of the buttons, ports, sensors, cameras and more of the tablet are accessible in the enclosure. If you are wanting to go with a holder that blocks off access or secures the charging cord look at our Forged Series holders.

CHOOSE YOUR HOLDER

Features by Series

EDGE SERIES FIT SERIES PRO SERIES FORGED SERIES
In Stock Yes Yes Yes Made to order
Mounting Pattern VESA 75, AMPS VESA 75, VESA 100, AMPS VESA 75, VESA 100, AMPS Any
Lockable No Yes, using tamper proof screws Yes, using keyed lock Yes, using tamper proof screws
Adjustable to fit cases Yes Yes Yes No, designed to fit your application
Tablet Access All buttons, ports, cameras, sensors, etc. All buttons, ports, cameras, sensors, etc. All buttons, ports, cameras, sensors, etc. Customizable to what you want access too
Color Black (gloss and matte) Gloss White Black (gloss and matte) Gloss White Black (gloss and matte) Gloss White Any
Minimum Order Qty 1 1 1 50
